Listing ID#10039689

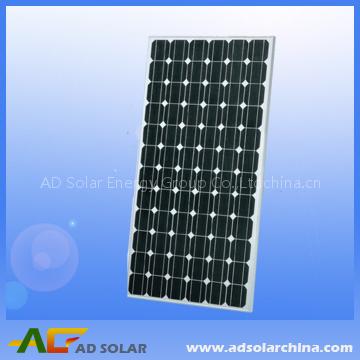

ModelAD 156X156mm 20W
CategorySolar Panels
Quick answer
solar panel is a Solar Panels product. Key specs — Brand: AD solar; Origin: china.
Product Description
20W Solar Panels with 600V DC System Voltage, Cell Size of 156 x 156mm
>> AD 156X156mm 20W
Key Specifications/Special Features:
Power: 20Wp
Maximum power (Pmax): 20W
Power tolerance: ± 5%
Maximum power voltage (Vmp): 17.3 to 17.9V
Maximum power current (Imp): 4.05 to 4.75A
Open circuit voltage (Voc): 21.4 to 22V
Open circuit current (Voc): 4.76 to 5.17A
Maximum system voltage: 600V DC
Mechanical specifications:
- Weight: 8kg
- Frame structure (material, corners): aluminum
- Front side: glass
- Front glass thickness: 3.2mm
- Encapsulate: EVA
- Back side: TPT
- Junction box: made in China
- Cells: made in China
- Cell type: mono-crystalline cell
- Cell size: 156 x 156mm
- Cell shape: quasi square
- Number cells: 36 in series
Absolute maximum rating:
- Operating temperature: 40 to 90°C
- Storage temperature: -40 to 90°C
- Maximum load capacity: 200kg/m2
- Maximum hail diameter at 80km/hour: 25mm
