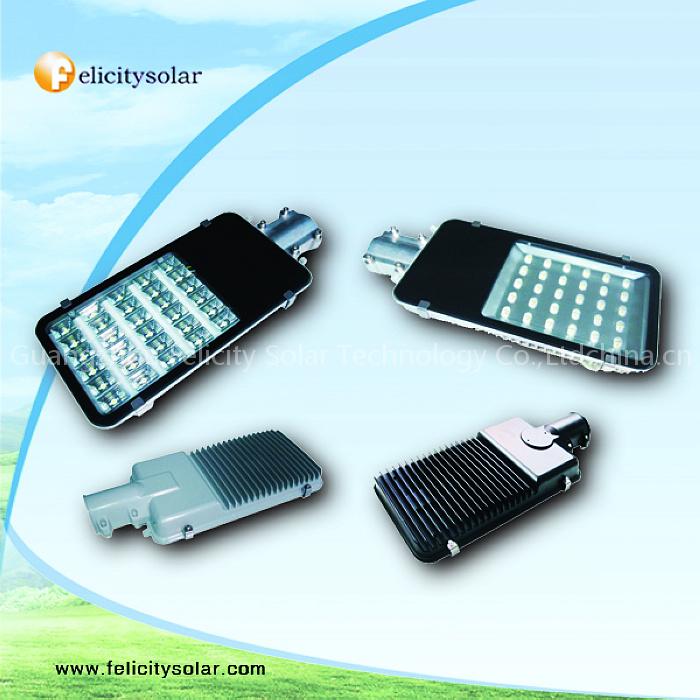

solar LED street lamp 30watt/12v
Specifications
- Brand
- Felicitysolar
- Origin
- Guangzhou,China
- Price Term
- FOB
solar LED street lamp 30watt/12v is a Lights & Lighting product. Key specs — Brand: Felicitysolar; Origin: Guangzhou,China; Price Term: FOB.
Product Description
Model:FL-X3-B36W
Electrical Data.
System power [Pmax] ±3% | 36W |
LED Consumption | 34.2W |
Single LED Power | 1.2W |
Number of LED | 30 |
Single LED Current | 360mA |
Single LED Voltage | 3.3V |
Input Voltage | 12V/24V |
power factor | 0.95 |
color temperature | Pure white:6,000-6,500K, |
Luminous efficacy(lm/W) | >90lm/W |
Depreciation | 1,000h/3% |
Lamp's Efficiency (%) | >90% |
IIumination (E) | (Height=6m)>28lux (Height=8m)>20lux |
Effiective IIuminated Area | 20x8m(Height=6m) 26x10m(Height=8m) |
The Highest Light Intensity Angle | 120": horizontal Axis 110":Vertical Axis 45" 140":horizontal Axis 130":Vertical Axis 45" |
Diameter of Install pipe | Φ61mm |
Junction Temperature(Tj) | 60"C±10"C |
System Resistance(Rja) | 0.28"C/W |
Working Temperature | - 30"C-50"C |
Working Life | >40,000Hrs |
Material | Aluminium Alloy and PC |
IP | IP65 |
Certificates | CE,ROHS,FC |
Warranty Period | Replacement for manufacturing defects within 1 years |
Dimensions | Length:495mm Width:210mm Height:70mm |
Weight | 3.58kg |
Container Loading | 2522PCS/20' |
