soft embossing wide-web machine
Specifications
- Brand
- CZ
- Origin
- beijing,china
- Price Term
- FOB
soft embossing wide-web machine is a Packaging Machines product. Key specs — Brand: CZ; Origin: beijing,china; Price Term: FOB.
Product Description
*Summarize

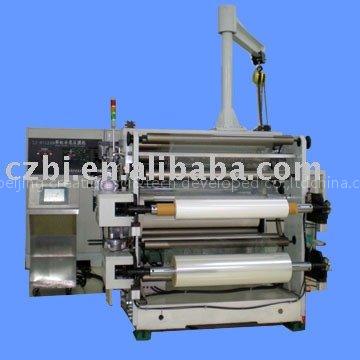

CZ-RY series of Hologram Image Wide Web Soft Embossing Machines are specialized equipments which developed and design for applying laser holographic grating material to packing industry. It can massively copy any laser holographic grating, which are marked on the metal plate in advance, on the 12-200um thick film of BOPP, PVC, PET etc. thin film material, and then make them into jewelly electro-chemical aluminum laser grating films and mysterious transmission rainbow holographic film.
*Parameter
Machine model | CZ-RY1200 | CZ-RY1400 | CZ-RY1700 |
Rated voltage | AC380V | AC380V | AC380V |
Rated power | 36KVA | 36KVA | 50KVA |
Embossing speed | 60M/min | 60M/min | 60M/min |
Embossing width | 0.65-1.22m | 0.65-1.42m | 1.0-1.67m |
Temperature | indoor-210 | indoor-210 | indoor-210 |
Occupy size | 4*3.85*3m | 4*3.85*3m | 4*3.85*3m |
Overall size | 2300*2400*2200 | 2300*2600*2200 | 2300*2900*2200 |
