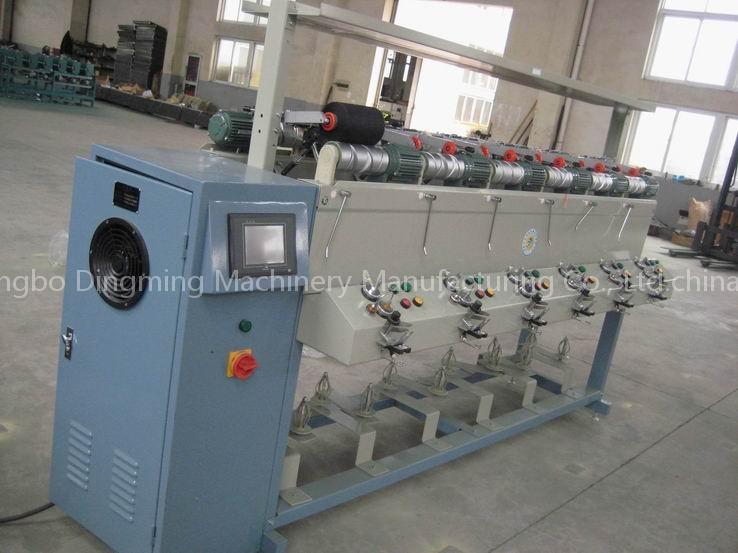

soft cone winder

Features:

1.Perfect soft package edge and density uniformity.

2.Winding Transmission: every spindle is driven by a motor (90W) individually which is powered by an inverter.

3.Winding speed and density: 800m/min for cotton yarn and 600m/min for polyester yarn. The density is 0.2-0.4g/cm3 (depends on yarn types).

4.Electronic yarn breaks auto-stop function.

5.Anti-hard-edge function and electrical wobble frequency ant patterning function.

6.Package diameter and traverse: diameter ≤φtraverse is 152mm.

length counting for per spindle.

8.Advance touch screen operating system.

9.Double-sided 72 spindle/set.

10.Dimension: 13724×1240×2058mm include clean-out device.

We could make special type according to the customer’s request.
