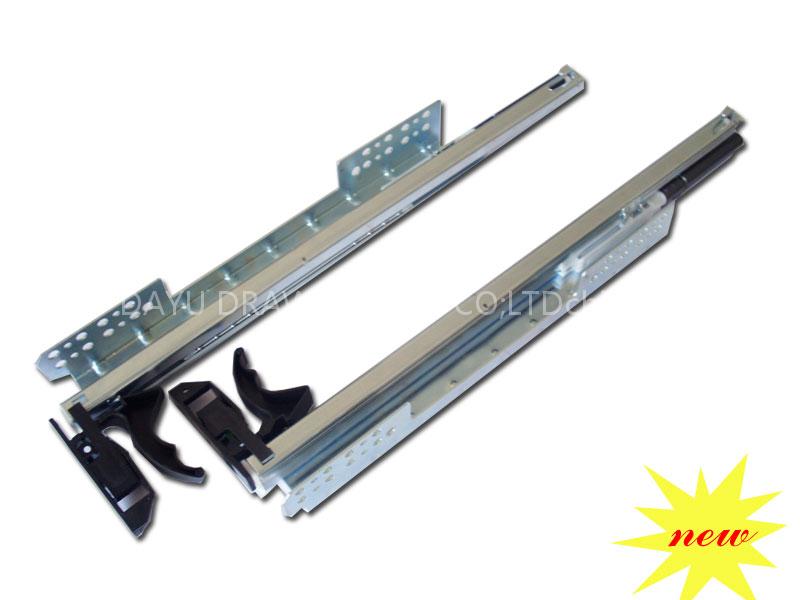

soft closing Full extension concealed ball bearing slide

soft closing Full extension concealed ball bearing slide (be used for double walled drawer systems )
Model N.o:CBS308ST
Material：Work hardened cold rolled steel
Material thickness:1.85/1.85/1.85mm
finish:Zinc Coated
Size:300，350，420，470，520mm

features:
1.silent system--all the self closing concealed ball bearing ing slide can add the integrated dampened closure mechanism lets drawers close gently and quietly
conctrol--the integrated roll-out prevention stops accidental opening
3.perfect vertical and lateral stability--The robust ,resilient tracks ensure optimal runner action through precison guided steel balls.
4.Matintencance free through self-cleaning ball tracks
5.selfclose --the spring-operated mechanism acts independentyly of load and closes the drawer safely and automatically.
6.Slide-on assembly--simply place the drawer on the runners and push in for connection.
7.Flexibility through interchangeability -- partial and full extension runners interchange without altering drawer dimensions.
from 1/2"(12mm) to 5/8"(16mm) drawer material thickness
