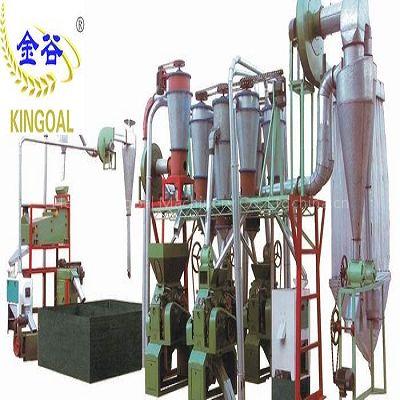

small scale wheat flour mill machine

Series whole square sifter extracting grade flour complete set equipment,this series equipment absorbs the achievement experience of large scale flour milling plant.Adopts long grinding passage,lightly grinding,precise grading and other special milling can produce refine flour and grade flour at the same time,and it is the ideal equipment for a middle or samll scale flour milling plant..

Series whole square sifter extracting grade flour complete set equipmet .

Main Model and Technical data 6FTF-36 Production Capacity 36T/24H Milling Techniques and main machines: 4-Break 3-Reduction 1-Bran Brushing 4-6F2235 roller mill,4-6F2240 Roller mill,3-83 double section plansifter,1-conveyor,1-bran brusher Cleaning Techniques:1 sifting-2 scouring-2 destoning-2 magnetic separating-1 washing- air separating 2 sifting-2 scouring-2 destoning-3 magnetic separating-1 washing-1 air separaating Products and extraction rate(%): Grade 1 flour:≥65% Grade 2 flour:≥75% Standard flour:≥80% Flour Quality:Better than GB1355-88(National Standard of China) Power Required(KW): Around 89 Size of Workshop(L*W*H,m):25*7*7
