Listing ID#10061658
ModelLCX
CategoryOther Farm Machines

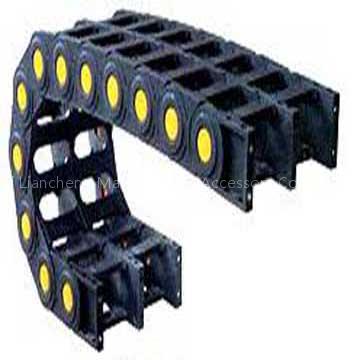

shunt-wound cable carrier
Specifications
- Brand
- LC-LIDA
- Origin
- China (Mainland)
- Price Term
- FOB
Quick answer
shunt-wound cable carrier is a Other Farm Machines product. Key specs — Brand: LC-LIDA; Origin: China (Mainland); Price Term: FOB.
Product Description
LCX35 series shunt-wound cable carrier
| Model | I.D | O.D | Bending radius® | Pitch(mm) | Non-support length(m) | Type |
| LCX35.1 | 35*50 | 62*83 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX35.2 | 35*60 | 62*93 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX35.3 | 35*75 | 62*108 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX35.4 | 35*100 | 62*133 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX35.5 | 35*125 | 62*158 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX35.6 | 35*150 | 62*183 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX35.7 | 35*175 | 62*208 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX35.8 | 35*200 | 62*233 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
LCX45 series shunt-wound cable carrier
| Model | I.D | O.D | Bending radius® | Pitch(mm) | Non-support length(m) | Type |
| LCX45.1 | 45*50 | 72.5*85 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX45.2 | 45*60 | 72.5*95 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX45.3 | 45*75 | 72.5*110 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX45.4 | 45*100 | 72.5*135 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX45.5 | 45*125 | 72.5*160 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX45.6 | 45*150 | 72.5*185 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX45.7 | 45*175 | 72.5*210 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
| LCX45.8 | 45*200 | 72.5*235 | 100/125/150/175/200/250 | 66 | 4 | bridge type/ whole seal type |
