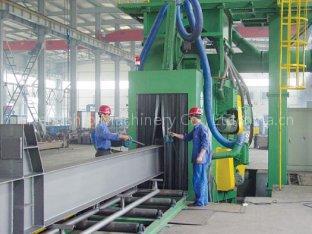

shot blasting machine HP8016
Specifications
- Origin
- China
- Price Term
- FOB
shot blasting machine HP8016 is a Non-ferrous Metal product. Key specs — Origin: China; Price Term: FOB.
Product Description
shot blasting machine is specially designed for the surface cleaning and intensifying of H beam.
HP 8016shot-blasting machine
Major technical parameter
Work-piece size | Cross section (width × height) | 800×1600mm | ||
Length of the wore piece | 3500-16000mm | |||
Quality standard | Surface cleanness | Sa2-Sa2.5 | ||
roughness | 15-50um | |||
Production rate passing speed of the work piece | 400-2500mm/min | |||
| impeller head | Type | Q034 | ||
Quantity | 8 | |||
Shot blasting capacity | 8×280Kg/min | |||
Power rate | 8×11KW | |||
Elevator | Lifting capacity | 120t/h | ||
Power rate | 7.5kw | |||
Longitudinal spiral conveyer | Conveying capacity | 120t/h | ||
Power rate | 7.5kw | |||
separator | Separating capacity | 120t/h | ||
Ball-clearing system | Power rate | 11kw | ||
Load-carrying capacity | 4293m3/h | |||
Input/output roller way | Capacity | 1000kg/m | ||
Power | 2×2.2kw | |||
Delivery speed | 400-4000mm/min | |||
Length of the roller | 13000mm×2 | |||
Dust removal system | Blowing rate | 16000 m3/h | ||
power | 15kw+3kw | |||
Total power | About 140kw | |||
Performance
HP8016 H beam shot blasting machine is specially designed for the surface cleaning and intensifying of H beam. it can intensifying roughness and increase the adhesion effect. there are 8 shot-blasting device and anti-corrosion device on both sides of the blasting area. they will be installed at the best piece according to the characteristics of H beam. there is a protecting cover lining on the internal wall of the box. which is replace. the dust-removing system adopts the internationally advanced drum-type device , characterized by high efficient , low running resistance, small volume and light weight .the dust emission meets the relevant requirements of the country regarding environmental protection.
Provide goods bound and compose parts
Impeller blasting: include clean room noumenon, portrait screw conveyer , eight Q034abrasive impeller, abrasion proof scale board ,
Ball track system :include front and back ball track
