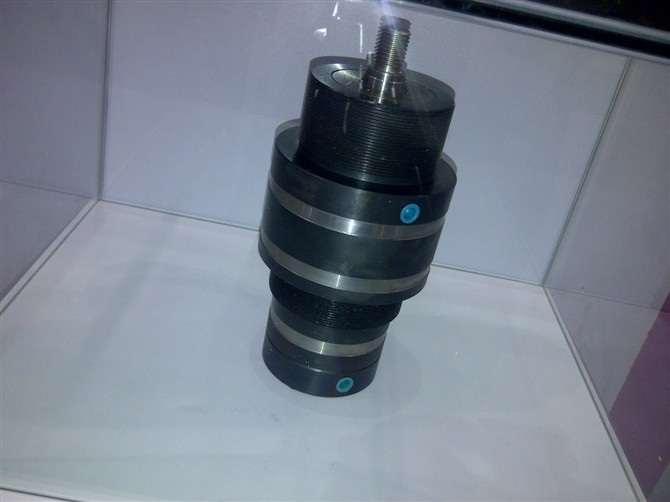

self locking hydraulic cylinder

Since the pressure is too large when many die-casting in feeding, cause the hydraulic cylinder back. HC designed and developed a self-locking cylinder device to solve this problem. The self-locking cylinder consist of cylinder tube, front housing, back housing, piston and piston rod.

The connection of front housing and back housing with the cylinder tube is thread. HC self-locking cylinder standard bore: 40 mm, 50 mm, 63 mm. The standard length of the piston rod is in 100 mm. The working principle of self-locking cylinder: Without lock block condition, the self-locking cylinder would not move back.

So the self-locking cylinder can bear the pressure form the die casting, and the self-locking cylinder would not move back.
