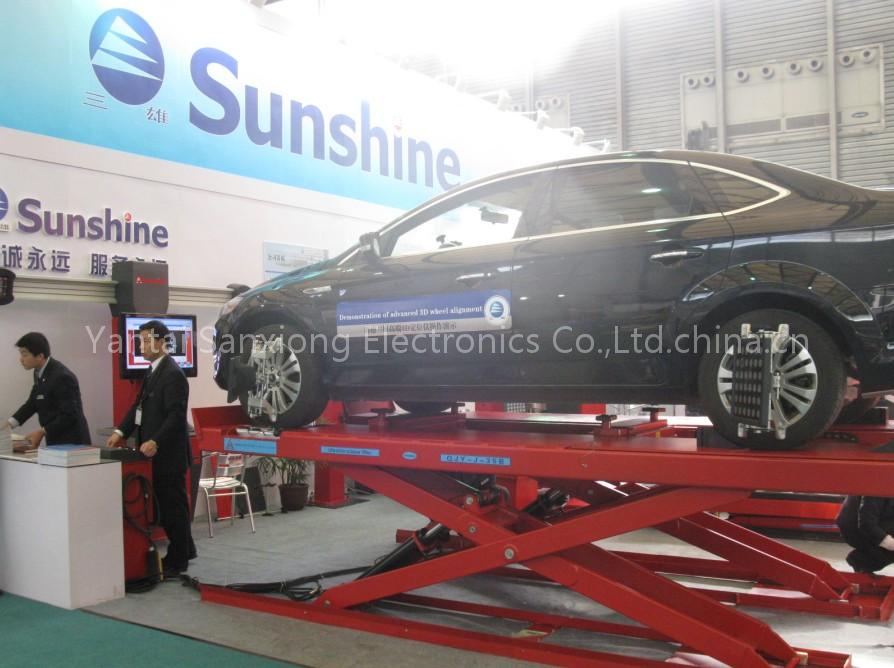

scissor car lift SXJS3521

Model: SXJS3521Scissor alignment lift3.5tons Double-Deck Lift (For Wheel Aligner) With automatically Pneumatic lock With rubber pads for protection Position for rolling angle plate for alignment

Specifications: Lifting

Capacity: 3500Kg (7700lbs) Max lifting height (main platform with sub-platform): 2200mm Main platform lifting height (sub-platform): 1750mm(450mm) Clearance between platform: 800mm Total width: 2100mm Single platform total width: 650mm Total length: 4100mm Lifting Time: 40s Lowering Time: 18s-40s Power Supply

Voltage: 220V/380V, 1ph/3ph Motor power: 2.2Kw Net

Weight: 1750Kg Gross

Weight: 1800Kg Packing

Dimension: 4030*615*460mm (2pcs) 470*340*1030mm (1pc) Cubic Meter: 3.0cbm Shipping: 4 pieces / 20’ container 9 pieces / 40’ container12 pieces / 40HQ container
