Listing ID#10100154
ModelLWZ-D400x450/630KN NO:63T
CategoryFurniture Making Machines

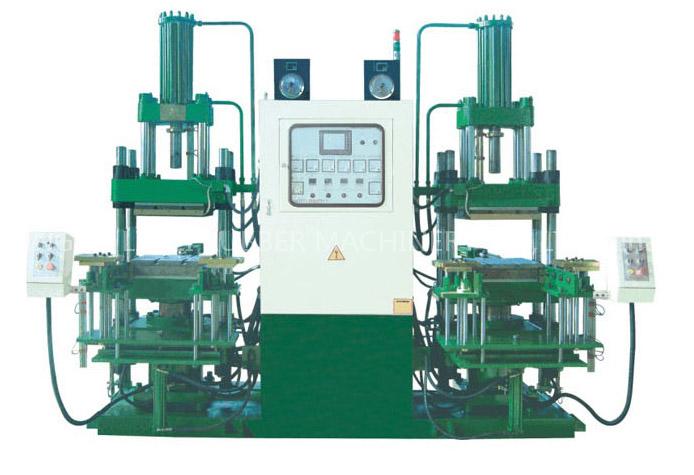

rubber products making machine-63T
Specifications
- Brand
- LIWEI
- Origin
- CHINA
- Price Term
- FOB
Quick answer
rubber products making machine-63T is a Furniture Making Machines product. Key specs — Brand: LIWEI; Origin: CHINA; Price Term: FOB.
Product Description
rubber products making machine-63T Detailed goods description for MODEL:LWZ-D400x450/630KN NO:63T
| CLAMPING FORCE | 630KN |
| SYSTEM PRESSURE | 21MPa |
| CLAMPING STROKE | 250mm |
| FAST CLAMPING SPEED | ≥60mm/s |
| HEATER PLATEN SIZE | 400mm×450mm |
| HEATER PLATEN DISTANCE | 120350mm |
| MAX TEMP | 250 |
| INJECTION WEIGHT | 808cc |
| EJECTOR STROKE | 250mm |
| TRANSFER STROKE | 305mm |
| TRANSFER PRESSURE | 110Mpa |
| EXTERNAL DIMENSION | 1800mm×1700mm×2500mm |
| HOPPER SPECIFICATION | 70mm×215mm |
| MOTOR POWER | 5.5KW |
| HEATER POWER | (3.6+3.9)KW |
| EJECTOR TONNAGE | 60KN |
| OIL TANK CAPACITY | 300L |
Features:
with automatic insertion/withdrawal device and ejection device, labor intensity gets low. and damage on mould keeps low.
rubber injection moulded products:
automobile parts(shock absorber),Rubber Gasket, Rubber Bumper, Rubber Dust Cap, Rubber O Rings, Rubber Couplings, Rubber Washers, Rubber Seals, Rubber Grommets construction(rubber mat), medical equipment(stopper for glass utensils),electric power(rubber insulation gloves) as well as Rubber Boots, Rubber Bellows, .
