Listing ID#10100229
ModelLWZ-D400x450/630KN NO:63T UNIT
CategoryFurniture Making Machines

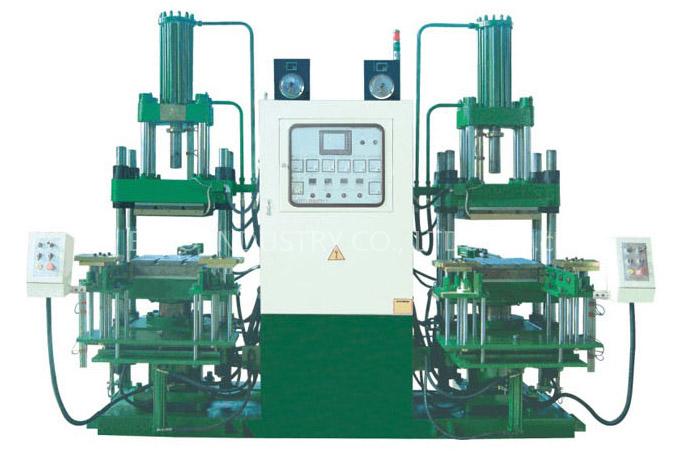

rubber injection molding machine-63T Unit
Specifications
- Brand
- LIWEI
- Origin
- china
- Price Term
- FOB
Quick answer
rubber injection molding machine-63T Unit is a Furniture Making Machines product. Key specs — Brand: LIWEI; Origin: china; Price Term: FOB.
Product Description
rubber injection molding machine-63T Unit
Detailed goods description for LWZ-D400x450/630KN NO:63T UNIT:
Detailed goods description for LWZ-D400x450/630KN NO:63T UNIT:
| CLAMPING FORCE | 630KN |
| SYSTEM PRESSURE | 21MPa |
| CLAMPING STROKE | 250mm |
| FAST CLAMPING SPEED | ≥60mm/s |
| HEATER PLATEN SIZE | 400×450mm2 |
| HEATER PLATEN DISTANCE | 120-350mm |
| MAX TEMP | 250 |
| EJECTIOR STROKE | 250mm |
| TRANSFER STROKE | 305mm |
| TRANSFER PRESSURE | 110Mpa |
| THE MOVING PLATEN STROKE | 600mm |
| HOPPER SPECIFICATION | 70×215mm |
| MOTOR POWER | 7.5KW |
| HEATER POWER | 7.5KW×2 |
| EJECTOR TONNAGE | 60KN |
| OIL TANK CAPACITY | 300L |
Features:equipped with PLC, electrical system to easily to operate.
rubber injection moulded products:
automobile parts(shock absorber), construction(rubber mat), medical equipment(stopper for glass utensils),electric power(rubber insulation gloves) as well as Rubber Boots, Rubber Bellows, Rubber Gasket, Rubber Bumper, Rubber Dust Cap, Rubber O Rings, Rubber Couplings, Rubber Washers, Rubber Seals, Rubber Grommets.
