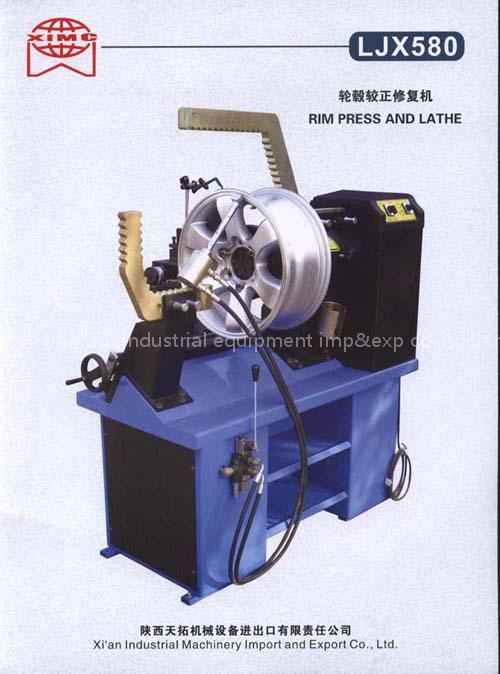

rim press lathe machine

RIM STRAIGHTENING MACHINEWith LATHE System.This unique machine is used to correct and straighten all kinds of defected steel and alloy rims ranging from 10'' to 22'.DIMENSIONSHeight 1250 mmWidth 1110 mmLength 610 mmNet Weight 370 KgMOTOR SPECIFICATIONSMechanic 0,55 kw, 1400 rpm, 0,75 hp, 3 phase - single phase, 220V - 380 VHydraulic 0,75 kw 1400 rpm, 1 hp,3 Phase - single phase, 220V - 380 VSound 35 dbHYDRAULIC PISTON POWERTotal pressure = πr2 x 160 (Working pressure bar)Total pressure = 3,14* (3,15 x 3,15) = 31,156kgTotal pressure = 31,156 x 160 = 4 984,96kg Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.

As you have seen above formula you can have 5 tons of total pressure while working on our LJX580 machines.STANDARD ACCESSORIES LIST 1. 18 pcs rim attaching center 2. 1 pcs (mihengir) metal pointer3. 7 pcs press tips4. 3 pcs support axis for press tips5. 1 pcs lever 6. 1 pcs lathe pen7. 1 pcs upper support8. 1 pcs lower support9. 4 pcs Support pins10.

Flange nuts and bolts
