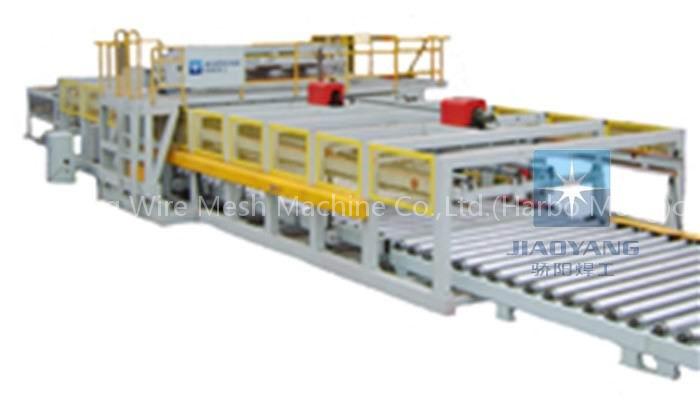

reinforcing mesh welding machine

Function features:air cylinder drived typeThis kind machine is our latest developed reinforcing mesh welding machine. The line wire and the weft wire are pre-straight and pre-cut. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto. The welding power comes from the cylinders. It’s easy to control the welding pressure .

The weft wire feeding from the multi hopper which capacity is more over ten times than the traditional hopper. The new machine added the bear wire net and carry equipment that makes the working more convenience . The welding part is used the springiness input wire trunking that makes the welding copper use for long time.

This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.Main technical parameters:Wire diameter 5.0-12mm Line wire form pre-cut wire

Weft wire distance Mini 25mm Weft wire form pre-cut wire

Line wire distance 100-300mm Rated voltage 380V

Welding net width 2500mm Rated power 140KVA X 12

Welding speed 25times/min Overall dimension 24 X 6.0 X 2.65M

line wire No. 24 Length wire net 6000mm

Products & Application:The welded mesh can be used in the floor & wall reinforcing mesh in the building, reinforcing mesh in the tunnel, bridge and road.
