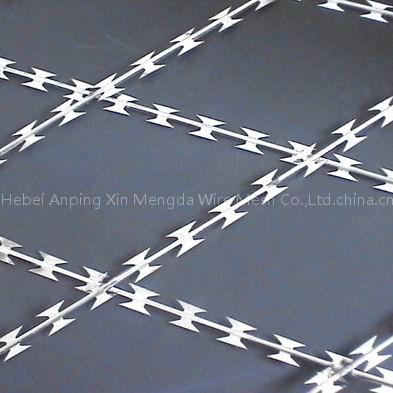

razor wire fence

Razor Wire Fence is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Currently, barbed tape has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

Razor Blade Specification:
nbsp

Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-12		0.5±0.05	2.5±0.1	12±1	13±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2

Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.
Barbed Tape Wire Specification

Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-12.18.22	Cross type
600mm	86	14M	BTO-12.18.22	Cross type
700mm	72	12M	BTO-12.18.22	Cross type
800mm	64	10M	BTO-12.18.22	Cross type
960mm	52	9M	BTO-12.18.22	Cross type

Notes
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.

Special sizes can be offered according to the requirements' of the customers.
Materials: Galvanized steel sheet and wire, also stainless steel sheet and wire.
nbsp

We hope you kindly enquiry,if you want to get the quotation,please offer the specifications.
