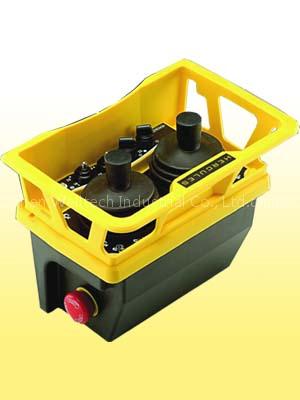

radio remote control is a Other Construction Machinery product. Key specs — Origin: China.
Product Description
1.European-made water-proof industrial standard joystick, duration up to million times.
2.Tough PC/PA housing material to meet the worst environment, shock/water/dust-proof.
3.International standard EMS-stop push button (turn-to-on) with dual-security key in the other side.
4.Function-setting via PC, easily meet different requests for various possibilities.
5.Internal antenna design, avoid unnecessary damage/broken..
6.Interference free from multi digital-protect, prevent error-motion occurred.
Technical Parameter:
Security codeup to 256 sets.
Output powerless than 10mW.
Frequency range300MHz (20CH) / 868MHz (20CH).
Channel spacing50Hz, 60Hz.
Frequency controlQuartz crystals.
Operation temperature-10 ~ +70
Operation range100M (ex-factory standard).
Ratio output voltage0-10V.
coordinate with inverter.
Ratio output current0-1A..
coordinate with hydraulic valve.
Transmitter enclosureIP65.
Receiver enclosureIP67.
Operation voltageDC12V, 24V.
(for Mobile hydraulic crane use).
Option voltageAC 110V / 220V / 380V.
(for crane use).
SPECIFICATION:
2 cross-axis fingertip joystick, 6 directions each direction with 5steps.
