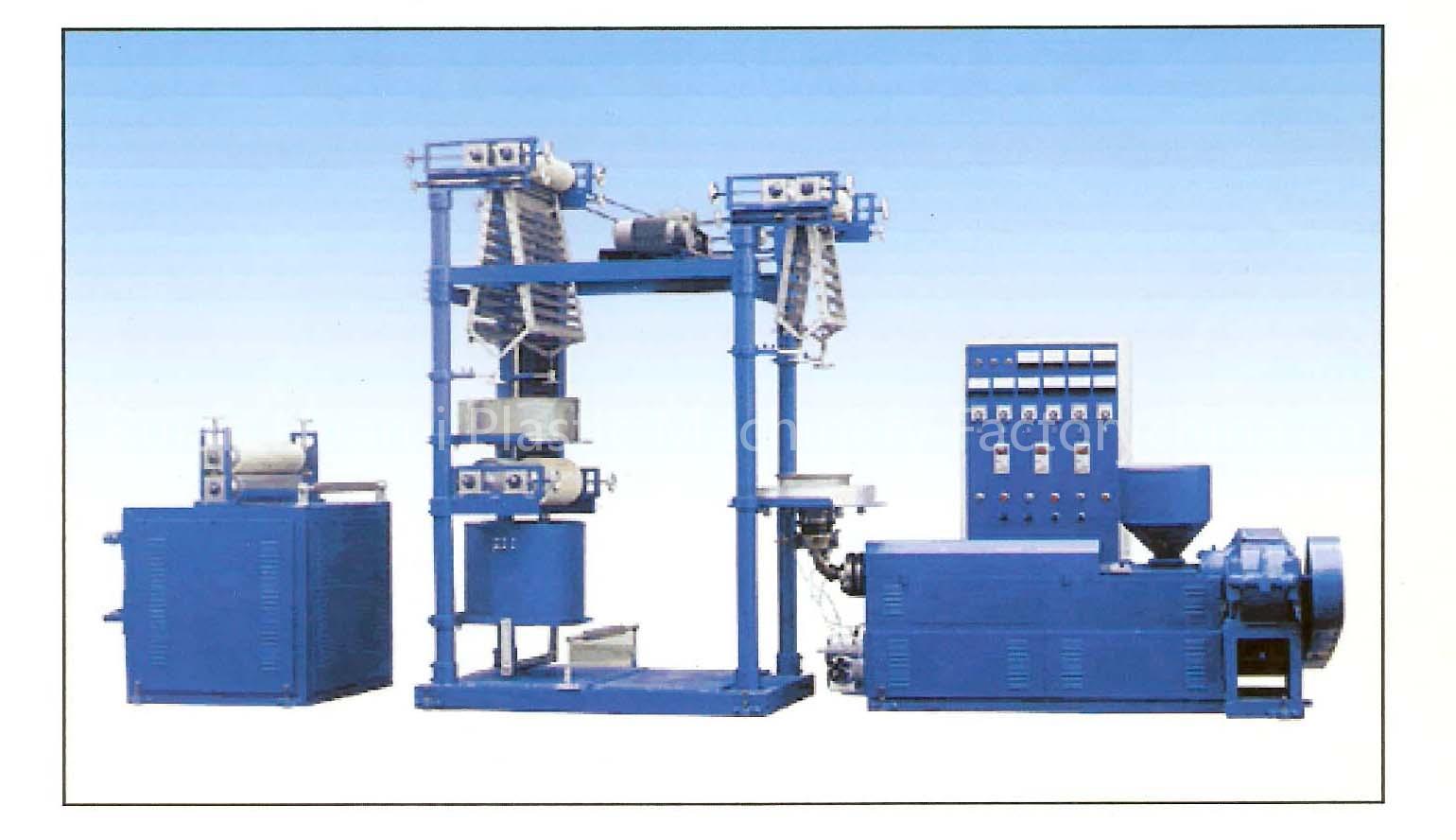

pvc film blowing machine

Use :[/b]

The machine is suit for PVC resin by the use of membrane technology Blown Film Forming product specifications heat shrinkable film,the film have the advantage: a transparent film, and machiney has a higher rate of contraction in the advantages of today's popular new packaging materials, widely used in packaging of the food, beverage, tea, glass products , handicrafts, sanitary wares, cosmetics, electronic products, and so on .

Featuress[/b] [/b]:

1, the unit mainly by the plastics extruder, the wind Central, nose installations, towing equipment, cooling equipment, heat expansion devices, winding devices, heating systems and electronic control devices composition

2Key parts screw and barrel adopt 38GrMoAIA quality alloy steel, finished ammonification, high hardness, wear resistance, corrosion resistance and other properties;

3Using new screw, 1:23 diameter, and suitable for high melt viscosity, thermal stability is polyvinyl chloride (PVC) plastics and plasticizer for mixing, plastic superior level; ;

4 Automatic temperature control system configuration control the heater and cooling fan fuselage, plastination process of constant temperature throughout, accurate and consistent with film production technology requirements to ensure that the film reached fever resumption outstanding quality;

5model head , wind Central adopt special structure, and is good for plastination and cooling requirements

6Easy to operate, compact structure, centralized control, a higher degree of automation

Main technical specification[/b]:

PVC Extruder

Type

SJRM-65*28/800

Performance

Raw Material

PCV power

Film Thickness(mm)

0.01-0.10mm

Film Width(mm)

300-800

Output(kg/h)

60-70

Extruder

unit

Screw Diamete(mm)

Φ65

Screw L/D Ratio

28:1

Main Motor(kw)

22

Screw speed

10-80r/min

Heating(kw)

16

Die-head

unit

Die-Head Diameter(mm)

Φ100

Die-Head Heating(kw)

4

Die Head and Barrel material

38GrMoAIA

Winder

unit

Winding Ability(mm)

Φ400×800

Winding Motor(kw)

1.5

Winding film width(max)

800mm

Winding roller width(max)

900mm

Machine Weight(T)

3.5

Machine Dimensions(L*W*H)M

6×2.5×3.5
