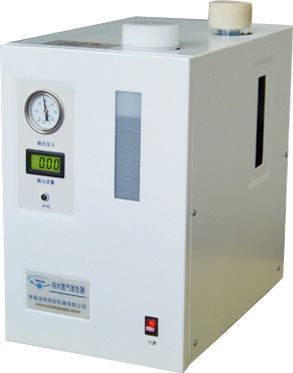

pure hydrogen generator - SPE-300

SPE-300 Main Characters:

World advanced "SPE" technology ( solid polymer electrolysis)
No chemical inside. Directly electrolysis pure water.
Use proton exchange membrane from USA "Dupont" brand
Core part called electrolysis cell. It use Titanium material with iridium tantalum material.
Output flow rate is LCD display.


SPE-300 Technical Data:

Model SPE-300
Output H2 flow(LCD display) 0--300ml/min
Output H2 purity 99.999%
Output H2 pressure 0--0.4MPa ( set at 0.4MPa when delivery)
Pressure Stability < 0.001MPa
Using water requirement >2meghom.cm
Input power 220 / 110 ± 15%, 50--60Hz
Power consumption 120
Size 350*220*340mm
Weight 12kgs
