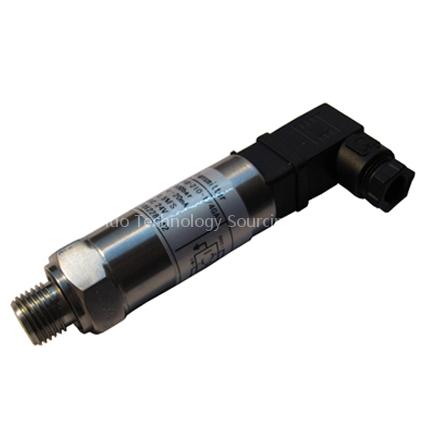

pressure transducer sensor oem low cost (SS312)

SS312 Series OEM Pressure Transducer For Clean Fluid Application 1,Hydraulic/Mobile Hydraulic 2,Pneumatic Systems 3,Food and Beverage Industry 4,Refrigeration Systems 5,Pumps and Compressors 6,Energy and water management 7,Construction and Agricultural Equipment Features 1,Low Cost 2,Various Outputs 3,Compact Design 4, Low power consumption 5,OEM Tested and Approved 6,316 Stainless steel Housing 7,All stainless steel EBW structure Performance & Parameters Supply Voltage 12~28 VDC*** Output Signal 4-20mA*** Pressure Range 0~60,0~600bar*** Proof Pressure 1.5×FS pressure Burst Pressure >3×FS pressure Accuracy 1% Stability 0.2%Full Scale Compensated Temp -10~60°C Operating Temp -20~70°C Loading Resistance 0-400 Ohm Insulation Resistance >2000 Mohm Machanical Configuration Pressure Port 1/4GAS(typical)*** Electrical Connection 9.4 mini DIN*** Sealing Rating IP65 Housing 316 Stainless Steel Diaphragm S.S.

Diaphragm
