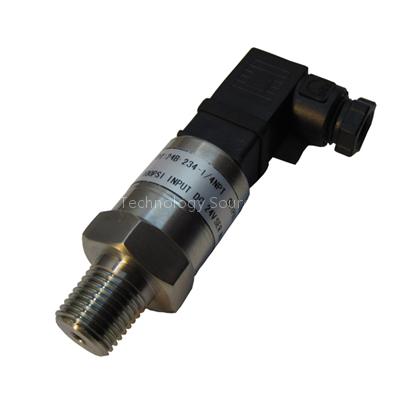

pressure transducer sensor oem low cost (SS306)

SS306 Series Low Cost OEM Pressure Transducer Application 1,Hydraulic/Mobile Hydraulic 2,Pneumatic Systems 3,Food and Beverage Industry 4,Refrigeration Systems 5,Pumps and Compressors 6,Energy and water management 7,Construction and Agricultural Equipment Features 1,Low Cost 2,Various Outputs 3,Compact Design 4, Low power consumption 5,OEM Tested and Approved 6,316 Stainless steel Housing 7,All stainless steel EBW structure Performance & Parameters Supply Voltage 12~36 VDC*** Pressure Range 0~700bar Proof Pressure 1.5×FS pressure Burst Pressure 3×FS pressure Accuracy 0.25%*** Stability 0.2%Full Scale Compensated Temp -10~75°C Operating Temp -20~80°C Fatigue Life Ceramic Diaphragm: 2.5*105 ~ 3*105 S.S.

Diaphragm: 5*105 ~ 8*105 Machanical Configuration Pressure Port 1/4NPT(typical)*** Electrical Connection 3 pin Packard,9.4 mini DIN*** Sealing Rating IP65 Housing 316 Stainless Steel Diaphragm 0-1500psi = ceramic diaphragm 2000-10,000 = 17-4 SS diaphragm
