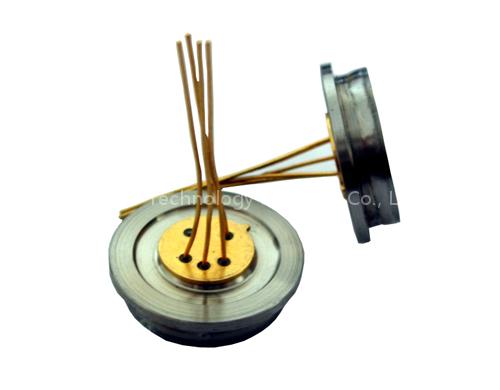

pressure transducer sensor oem low cost(SS104)

SS104 Series Ulter-Thin Pressure Transducer Core Application 1,Petroleum, Chemical,Metallurgy 2,Electric power, Aviation, Aerospace 3,Medical equipment, Automotive 4,Other industry process control and measurement Features 1, Plain end diaphragm at choice 2, External threaded nipple at choice 3, Gauge pressure & absolute pressure at choice 4, High precision, high reliability Parameters Power supply 1.5 mADC(typical) Electric connection Kovar pin Input impedance 3 KΩ~6 KΩ Overload 3×F.S(<3.5MPa); 1.5×F.S(≥3.5MPa) Temperature compensation 0~80°C Operating Temperature -40~125°C Measuring range 0~100KPa…10MPa Accuracy ±0.25%FS(typical) Zero output ±2 mVDC Zero thermal error ±0.02%FS/°C(typical) Span thermal error ±0.02%FS/°C(typical)
