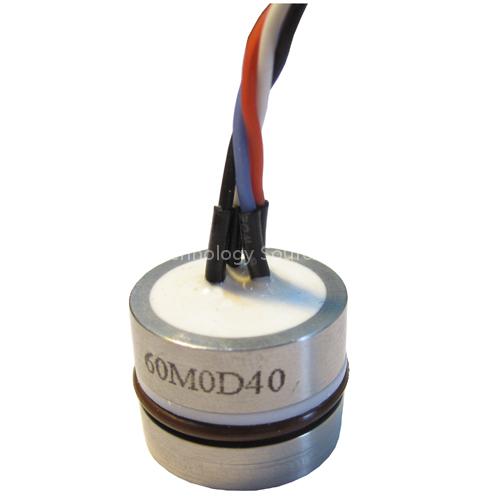

pressure transducer sensor oem low cost (SS100)

SS100 Series Piezoresistive Pressure Transducer Core Application 1,Petroleum, Chemical, Metallurgy 2,Electric power, Aviation, Aerospace 3,Medical equipment, Automotive 4,Other industry process control and measuremet Feature 1,Flat membrane interface or Externally threaded couping is optional. 2,Absolute pressure, Sealing pressure is optional.

3,High accuracy, High reliability.

Performance & Parameters Power supply 1.5 mADC(typical) Electric connection Kovar pin or 100mm silicon rubber flexible wires Input impedance 3 KΩ~6 KΩ Overload 3×F.S(<3.5MPa); 1.5×F.S(≥3.5MPa) Temperature compensation 0~80°C Operating Temperature -40~125°C Measuring range 0~35KPa…60MPa Accuracy ±0.25%FS(typical) Zero output ±2 mVDC Zero thermal error ±0.02%FS/°C(typical) Span thermal error ±0.02%FS/°C(typical) Construction O-Ring Seal Fluorine rubber, Silicone rubber Diaphragm Diffused silicon Housing Stainless steel 316L O-ring: Viton Filling Liquid Silicone oil Diameter Ø19mm
