pressure transducer is a Business Services product. Key specs — Origin: china; Price Term: FOB.
Product Description

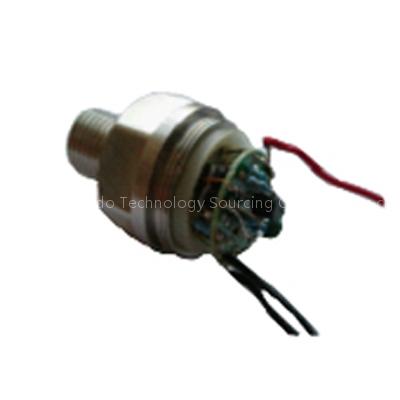

SS106 Series Oil-filled Pressure Sensor with thread Application1,Petroleum, Chemical, Metallurgy, 2,Electric power, Aviation, Aerospace,3,Medical equipment, Automotive, Refrigerator compressor4,Other industry process control and measurement Feature1,Stainless steel all-welded structure and the "O" ring seal structure is optional2,High accuracy, high reliability, Corrosion resistance3,Configuration(overall size) is optional Performance & Parameters Constant voltage power supply: 10 VDC(typical)Constant current power supply: 1.5 mA(typical)Input impedance: 3 KΩ~6 KΩMedia Compatibility: liquid, gas or steam compatibled with stainless steel 316LO-Ring Seal: Fluorine rubber, silicone rubber Filling liquid: Silicone oil Measuring range: 0~35KPa…60MPa Comprehensive Precision: ±0.1%FS(min); ±0.25%FS(typical); ±0.5%FS(max)Zero output: ±2 mVDCfull-scale output: ≥100 mVTemperature compensation: 0~80°COperating Temperature: -40~125°CZero drift: ±0.02%FS/°C(typical)Sensitivity temperature drift: ±0.02%FS/°C(typical)Overload: 3×F.S(
