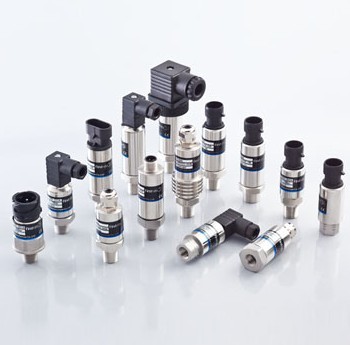

pressure sensor

FST800-201 universal industrial pressure sensor is a silicon MEMS strain gauge sensor which is glass bonded to a stainless steel diaphragm. It avoids influences on product caused by temperature, humidity, mechanical fatigue and medium, thus to improve its longterm stability in the industrial environment.

Its pressure chamber is made of 174PH stainless steel in an integrated way without welding seams or Orings and free of leakage troubles. The sensor adopts the advanced digital Compensated Temperature and is featured with the strong interference resistance, wide working temperature scope and longterm stability, etc.

The series products provide several optional pressure connections and electric connections for customers.

Product Features Advance Microfused Silicon Strain Gauge, whole-designed elastomer, free of leakage troubles Advanced digital temperature compensation and wide working temperature scope High sensibility, high accuracy, high frequency response and longterm stability Excellent resistance against impact, overload, shock and erosion

Applicable Scope Industrial process testing and control Automatic testing system Hydraulic and pneumatic systems Pump station and water treatment system Industrial machinery manufacture

Pressure Type: gauge pressure and sealed pressure Pressure Range(bar):1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600 Pressure Range(psi):15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K Signal Output ：10mV/V ~ 15mV/V Signal Line Specification ：4wire Supply Voltage ：5~15VDC( recomend10VDC) Accuracy：±0.05%FS ±0.1%FS ±0.3%FS ±0.5%FS Zero Drift：±0.02%FS/°C Thermal Sensitivity Shift：±0.02%FS/°C Longterm Stability (1 Year)：±0.1%FS Frequency Response (-3dB)：3.2kHz Compensated Temperature ：-20~+85°C Working Temperature：-40~+85°C Storage Temperature：-40~+125°C Overload Pressure：300% FS Burst Pressure：500% FS Mechanical Vibration：±20g Impact (11ms)： 100g Environmental Protection：IP65 Media Compatibility：17-4PH EMC：EN61000-6 Certificates：RoHS
