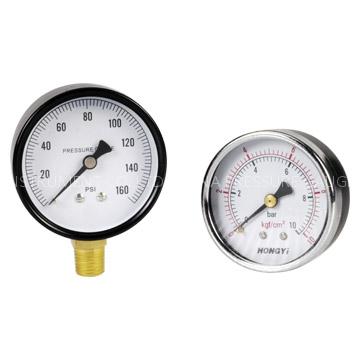

pressure gauge, manometer

Application range : They can be used with gas or liquid media. They are suitable for pneumatic or hydraulic systems, like : compressor, pump, FRL, regulator , spray gun, valve...etc.

Accuracy: ( Options) 2-1-2% ASME B40.1 3-2-3% ASME B40.1 ( 3-2-3% Full scale, manufactured in accored with ASME/ ANSI standard B40.1,1,1985) General Diameter : 1.5"(40mm), 2" (50mm), 2.5" (63mm), 3"(75mm), 3.6" (90mm), 4" (100mm) Case : ABS ( Black ) Enameled steel ( Black ) Steel nickel plated case ( Silver ) Enameled steel case ( black ) with extra nickel plated covered ( silver ) Ambient Temperature: -20C ~ + 60C Window : PC or Glass Bourdon tube : Phosphor- Bronze Pointer: Manganese Steel Movement : Brass Connection( to be with Buffer) : Material - Brass ( yellow ) or brass nickel plated ( Silver ) Size - 1/8", 3/8", 1/4", 3/4", 1/2" M1, ...etc; Thread - PT, PF, NPT, BSP(G), BSPT, ..etc.

Mounting type : 1. Bottom connection ( = LM, = Lower mounting )

2. Back connection ( = CBM, = Center back mounting )

3. Bottom connection with Flange

Compound gauge - 30"Hg(-76cmHg) ~300 PSI / 20Bar
