press brake & bending machine
Specifications
- Brand
- WSD
- Origin
- Haian,China
press brake & bending machine is a Business Services product. Key specs — Brand: WSD; Origin: Haian,China.
Product Description
Product Description

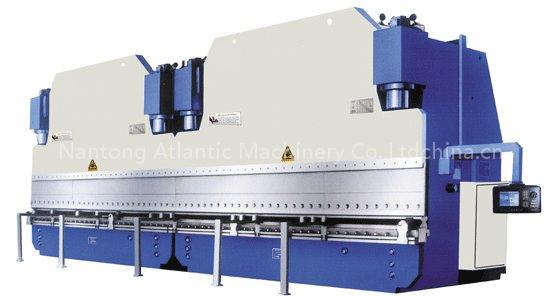

1. Two sets of series WC67K press brake of same specificationequiqqed with duplex synchronizing unit.
2. Two sets of tandem press brakes ensure extra-longworkqiece processing.
3. Two sets of tandem press brake can also be separately operated to ensure production efficiency increase.
4. Work table is equipped with the flexible compensation device.
5. Ram synchronization adopts mechanial-hydraulic servo Motor and mechanical block.
6. Motor-driven adjustment to stoke and back-gauge position, manul fine adjustment with counter display.
7. Tailored press brake of special groove depth, length can be made according to client's requirements.
Models we offered before
| Model | Pressure kn | Length of work table mm | Distance of both pole mm | Depth of groove mm | Stroke mm | Maximum height between work table and ram mm | Main motor kw | Weight kg | Dimension (LxWxH) mm |
| WC67K-2-180/4000 | 2X1800 | 2x2400 | 3040 | 320 | 200 | 475 | 2x11 | 2x13500 | 2x4000x1700x3015 |
| WC67K-2-250/4000 | 2x2500 | 2x2400 | 3130 | 400 | 250 | 530 | 2x18.5 | 2x19000 | 2x4000x1840x3150 |
| WC67K-2-250/5000 | 2x2500 | 2x2500 | 3930 | 400 | 250 | 530 | 2x18.5 | 2x24000 | 2x5000x1840x3450 |
| WC67K-2-300/6000 | 2x3000 | 2x6000 | 4720 | 400 | 250 | 580 | 2x18.5 | 2x3200 | 2x6000x2040x3830 |
| WC67K-2-400/6000 | 2x4000 | 2x6000 | 4700 | 400 | 320 | 630 | 2x30 | 2x45000 | 2x6000x2220x3980 |
| WC67K-2-500/6000 | 2x5000 | 2x6000 | 4600 | 500 | 320 | 700 | 2x30 | 2x55000 | 2x6000x2760x4000 |
| WC67K-2-800/6000 | 2x8000 | 2x6000 | 4600 | 500 | 400 | 900 | 2x37 | 2x72000 | 2x6000x325x4300 |
| WC67K-2-1000/7000 | 2x10000 | 2x7000 | 4600 | 600 | 400 | 900 | 2x55 | 2x115000 | 2x7250x3400x7350 |
We did export this kind machines to Russia ,India,Vietnam,UAE before ,which they bought for producing lamp poles and automobile beams .We can produce for special orders.
is a jointed venture with investment from HongKong and Germany,founded in 1969,which specialized in making machines for sheet shearing and bending ."Atlantic"brand machines have a good reputation at home and abroad ,machines produced here are with DIN standard.
Here we can ensure good quality and reasonable price machines for you .Welcome your arrival and looking forward to cooperating with you !
