Listing ID#10096164
Model2000
CategoryOther Plastic & Rubber Machinery

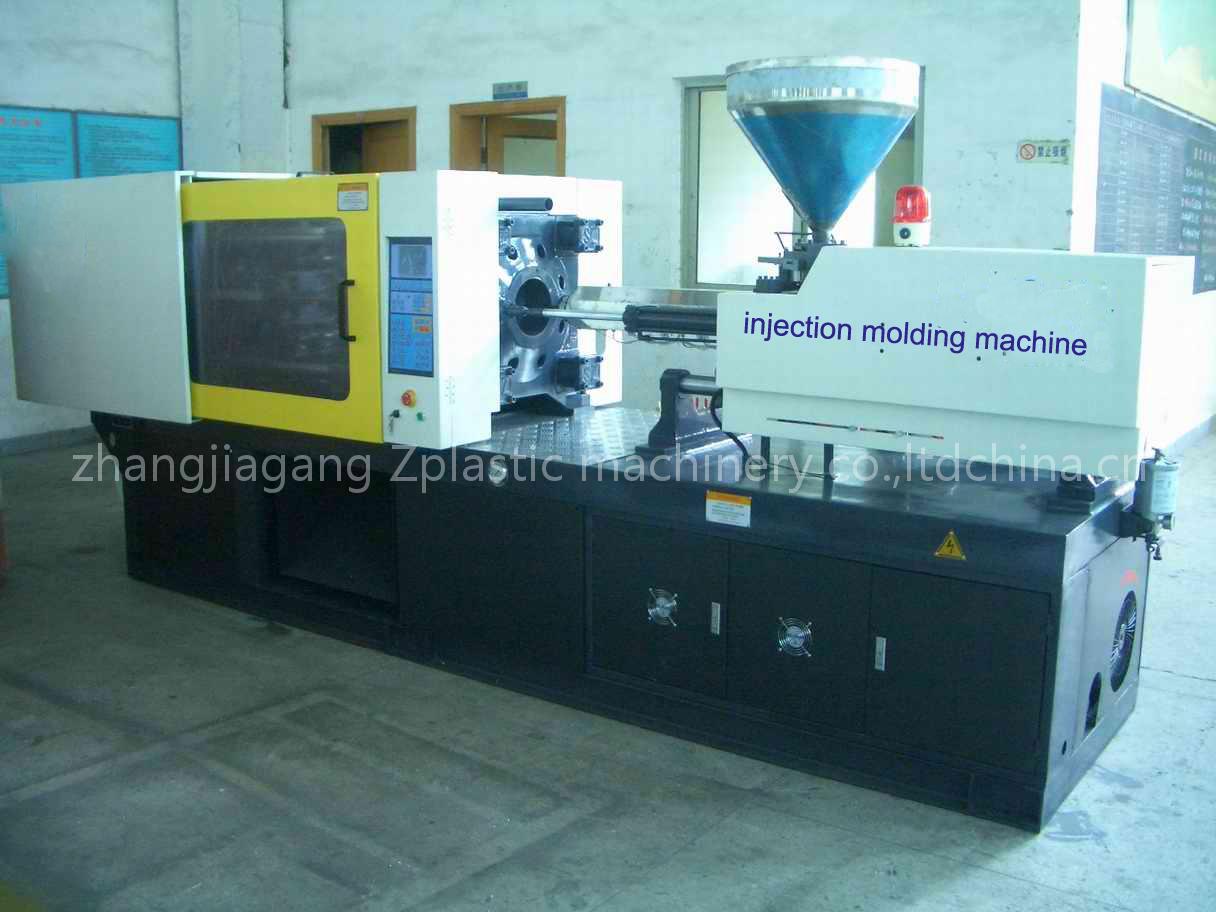

ppr pipe fitting injection molding machine
Specifications
- Brand
- Zplastic
- Origin
- China
- Price Term
- FOB
Quick answer
ppr pipe fitting injection molding machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Zplastic; Origin: China; Price Term: FOB.
Product Description
Item | Unit | Data | ||
Max. clamping force | KN | 2000 | ||
Max. opening force | mm | 500 | ||
Space between tie bars | mm | 505×505 | ||
Mould height | mm | 190-530 | ||
Max. daylight | mm | 1030 | ||
Ejector force | KN | 53.1 | ||
Ejector stroke | mm | 125 | ||
Ejector quantity | 5 | |||
Screw diameter | mm | 50 | 55 | 60 |
Screw L/D ratio | L/D | 23.1 | 21 | 19.3 |
Theoretical shot volume | cm3 | 491 | 594 | 707 |
Plasticising weight(PS) | g | 447 | 540 | 643 |
Injection pressure | Mpa | 215 | 178 | 149 |
Theoretical injection rate(PS) | g | 145 | 175 | 208 |
Plasticising capacity(PS) | g/s | 22.5 | 28.7 | 35.4 |
Screw torque | N.m | 1510 | ||
Max. screw rotate speed | r/min | 170 | ||
Injection stroke | mm | 250 | ||
