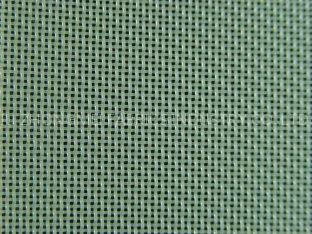

polyester plain fabric III is a Metals & Alloys product. Key specs — Origin: China; Price Term: FOB.
Product Description
The 2-shed and 3-shed plain fabric is mainly used in special lines, such as paper pulps making, Sulfate pulp packing and cardboard pulp and fiberboard plants, etc. Â
Weaving series &Types | Model | Thread Diameter (mm) | Density (thread/cm) | Intensity (N/cm) | Weight | Thickness | Permeability | ||||
Warp | Weft | Warp | Weft | Area of the surface | Joining | Joining with spiral | |||||
2-shed plain weaving fabric | 06702 | 0.70 | 0.70 | 8 | 7 | ≧1600 | 900 | 600 | 0.77 | 1.30 | 11000 |
09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 850 | 600 | 0.45 | 0.88 | 16000 | |
12502 | 0.50 | 0.50 | 13.5 | 8.5 | 1800 | 900 | 600 | 0.63 | 0.95 | 6500 | |
3-shed plain weaving fabric | 08603 | 0.5.0 | 0.60 | 10 | 9 | 1600 | 900 | 650 | 0.59 | 1.15 | 1400 |
07803 | 0.70 | 0.80 | 8 | 8 | 1600 | 900 | 650 | 0.85 | 1.35 | 10000 | |
20353 | 0.30 | 0.35 | 22 | 14.5 | 1200 | 750 | 600 | 0.31 | 0.60 | 13000 | |
20403 | 0.30 | 0.40 | 22 | 14.5 | 1200 | 750 | 600 | 0.35 | 0.70 | 13500 | |
