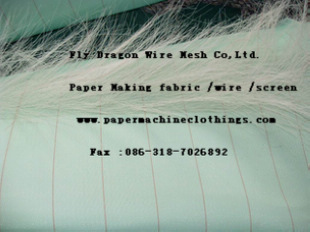

Polyester forming fabrics:
According to the weaving, polyester forming fabric can be

divided into 4-shed, 5-shed, 7-shed, 8-shed, 16-shed, 24-shed

etc. According to the category, it can be divided into single

layer fabric, double layer fabric, two-and a half layer fabric

and three-layer fabric

4-shed single layer Polyester forming fabric is standard type

of polyester forming fabric in paper making, mainly used for

producing cultural paper printing paper, packing paper and so

on.

5-shed single layer Polyester forming fabric is suitable for

making healthy, culture and packing papers etc.

8-shed single layer Polyester forming fabric is the most wear-

resisting one in the single layer screen, which have long

performance life, but mesh print is relatively deep. It is

mainly used for copying the papermaking bag, craft paper,

cardboard, corrugated paper and so on.

7-shed double layer Polyester forming fabric is suitable for

quality printing paper and tissue paper etc.

8-shed double layer Polyester forming fabric is suitable for

quality printing paper, tissue paper and the surface pulp and

inner pulp of the board paper etc.

8-shed, 16-shed double and a half layer Polyester forming

fabric is suitable for making quality printing paper, tissue

paper and surface pulp, inner pulp and base pulp of the board

paper etc.

Multi-shed three-layer Polyester forming fabrics suitable for

making quality printing paper, tissue paper and cigarette paper

etc.
