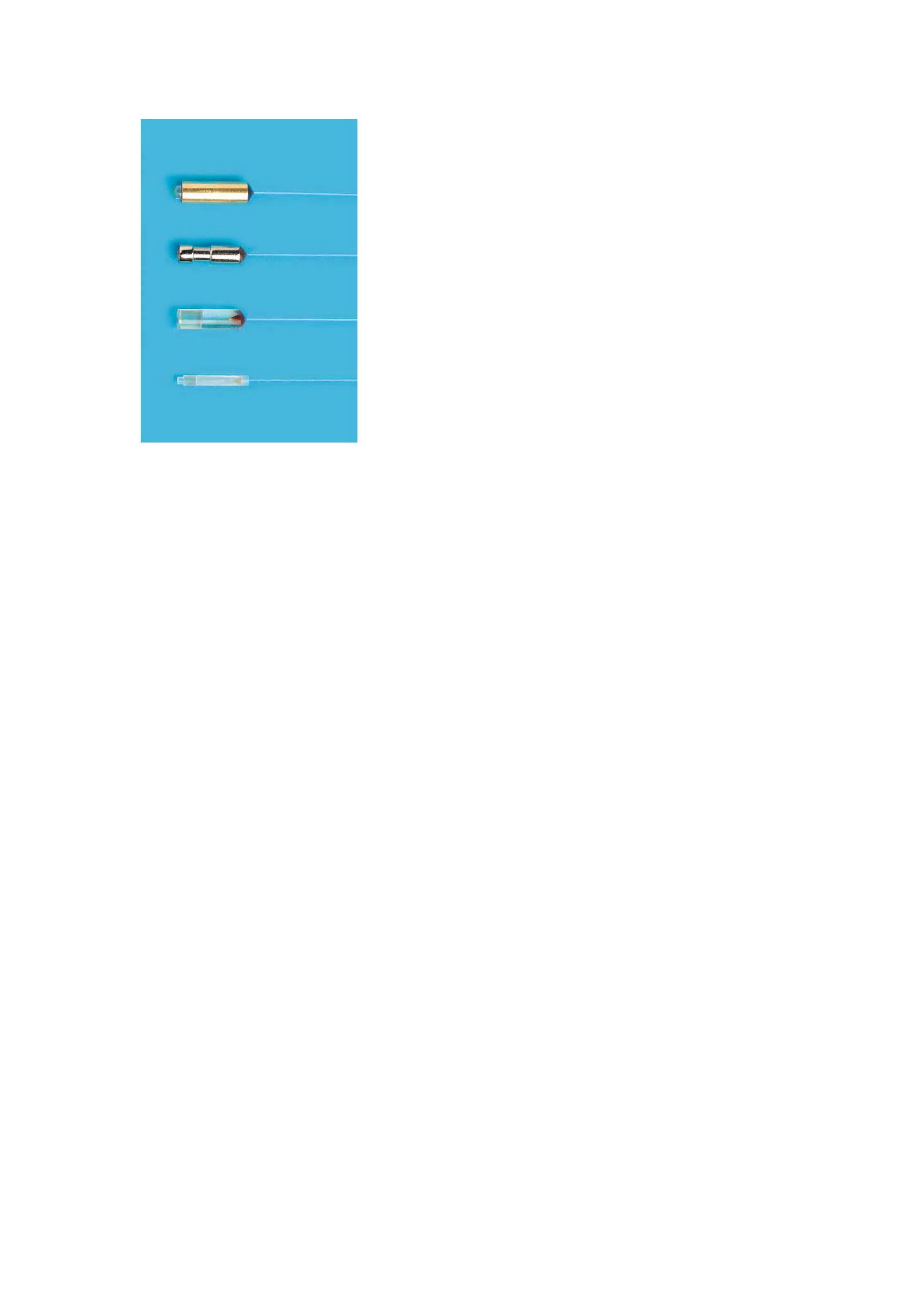

polarization maintaining collimator
Specifications
- Brand
- Jiexun
- Origin
- Putian City, Fujian Province, China
polarization maintaining collimator is a Telecommunications product. Key specs — Brand: Jiexun; Origin: Putian City, Fujian Province, China.
Product Description
Features
1High extinction ratio,
2Low insertion loss
3High return loss
4High responsibility
Application
1PMD compensation
2PM devices
3Free space communication
Specification
Type Parameter | 1064nm | 1310 or 1550nm | Unit |
Operating Wavelength Range | ±30 | ±30 | nm |
Working Distance | 5 or specify | 5 or specify | mm |
Typical Insertion 5mm | 0.25 | 0.20 | dB |
Max. Insertion 5mm | 0.30 | 0.25 | dB |
Typical Extinction Ratio | 25 | 25 | dB |
Min. Extinction Ratio | 22 | 23 | dB |
Min. Return Loss | 60 | 60 | dB |
Max. Tensile Load | 5 | 5 | N |
Max. Power Handling | 500 | 300 | mW |
Fiber Type | PM 980 panda or specify | PM 980 panda or specify | / |
Operating Temperature | -5~+70 | -5~+70 | ℃ |
Storage Temperature | -40~+85 | -40~+85 | ℃ |
Remark: 1,the above specification is for device without connector.
2,for device with connector, IL will be 0.3dB higher, RL will be 5dB lower.
