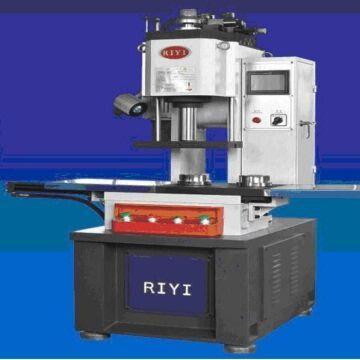

pneumatic operated impact press

1. The C-body design, Use of small space and easy operation.

2. Extension table, two working positions, high efficiency.

3. Rod mechanical limit, under pressure adjustable stroke, positioning accuracy 0.02mm.

4. With PLC control, easy programming process, positioning accuracy and high precision.

5. Key and Foot Switch two cycle start modes. Pressure Speed can be adjusted.

6. Safety well-designed, hand operation, with emergency stop button and jog up and down function.

7. Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.

Technical Parameters

Theoretical output pressure 150KN(15t)

Rated oil pressure 14Mpa

Max stroke 200mm

Max Opening Height 380mm

Thoat depth 200mm

Fast-forward speed 80mm/s

Feeding speed 10~80mm/s

Return speed 90mm/s

The size of the working table 450 X 400mm

The height of the working table 930mm

Size of the mold mounting hole Φ32mm

Power of motor 4.5kw

Power(3ΦAC,50Hz)380V

Weight ~kg

Defferent capacity of the machine ,the special request of the stroke,the working table are also pavailable.

We can also design the specail hydraulic press machine,hydraulic riveting machine,pneumatic machine for your actual needs.

Welcome to contact me at anytime.
