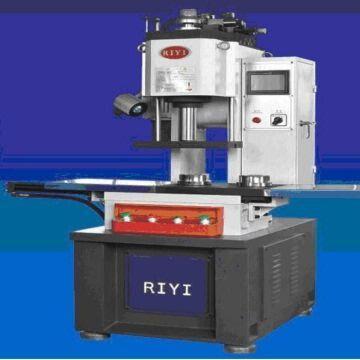

pneumatic operated impact press

1. Compressed air as power source, easy to operate.

2.No hydraulic system noise, can reduce electricity consumption and thus reduce production costs.

3.Adjustable cylinder stroke, special trip can be customized.

4. Output force adjustment easy, as long as regulate the input air pressure, should be able to achieve the required pressure.

5. Safety designed, using both hands to operate, with emergency stop and jog up and down function.

6. Multi-use, for pressing, punching, riveting, assembly, cutting and so on.

Technical parameters

Max working height 270mm

Cylinder stroke 120mm

Table sizw 200x200mm

Using pressure 0.4-0.7Mpa

Mold mounting hole φ30mm

Power AC220V,50HZ

Using pressure Theory pressure

0.4Mpa 2.97KN(297kgf)

0.5Mpa 3.66KN(366kgf) 0.6Mpa 4.47KN(447kgf)

0.7Mpa 5.12KN(512kgf)

Widely capacity are available.
