plastic Injection Machine

Plasticinjection machine,with clamping force of50ton,80ton,110ton,120ton,130ton,168ton,220ton,280ton,380ton,480ton,580ton,700tonetc.

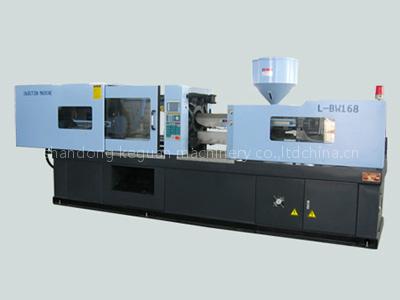

Technical data of L-BW168

Screw diameter (mm): 45
Shot size (cubic centimeter): 350
Injection pressure (MPa): 170
Injection rate (g/s):127
Screw L/D ratio (L/D): 22
Screw speed (rpm): 220
Clamping tonnage (kN): 1,680
Toggle stroke (mm): 420
Mould height (mm): 150-500
Space between tie-bars (mm): 455 x 455
Ejector stroke (mm): 110
Ejector tonnage (kN): 35
Heat power (kW): 9.5
Pump motor power (kW): 15
Machine dimensions (m): 5.0 x 1.4 x 1.9
Machine weight (MT): 5.2
Oil tank capacity (L): 380

Packing:
Wooden carton

1) Adopts imported advanced hydraulic components
2) Adopts excellent control valves
3)Adopt imported PLC which is special for injection machine. It isprocessed and controlled by CPU, improving the speed and the alarm onover-temperature.
4) Oil motor drive the gear to adjust mould. Themould can be adjusted automatically according to the pressure that wasset up in anticipation
