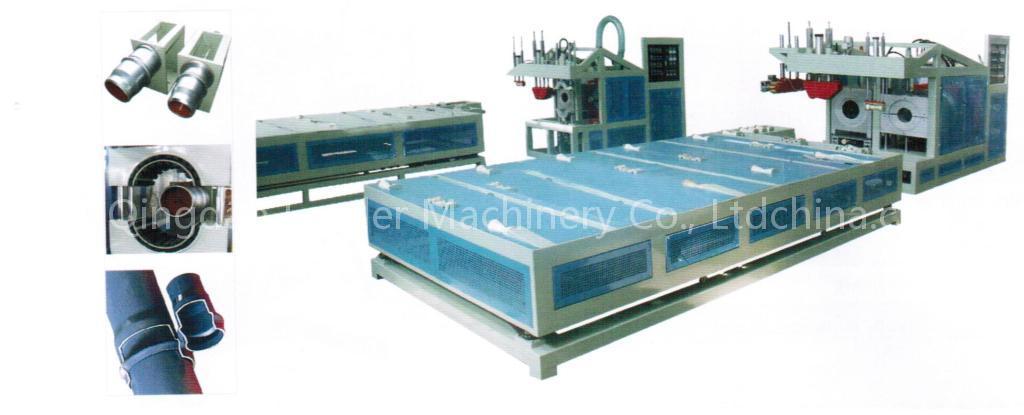

pipe belling machine
Specifications
- Origin
- Shandong, China
- Price Term
- FOB
Quick answer
pipe belling machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: Shandong, China; Price Term: FOB.
Product Description
Pipe belling machine
SGK-400 Full-automatic belling machine
SGK-250 Full-automatic belling machine
SGK series full-automatic belling machine is a special belling equipment for rigid PVC pipes, fully automatic models can be installed in the PVC pipe extrusion line for on-line use, expanding the form of R and the direct expanding, two forms, can be produced 0.6MPa-1.6Mpa of a variety of specifications to the drain pipe after the molding or the use of powerful water-cooled air-cooled, it is not easy deformation. Whole part of Mitsubishi Electric PLC, touch screen control from Taiwan, without artificial interference in the production process.
SGK-630 Full-automatic belling machine| Pipe diameter(mm) | 315-630 |
| Working length (mm) | 4-6 |
| Production speed | 1-8pcs/hr |
| Motor power of oil pump (KW) | 4 |
| Working pressure(MPa) | 4-6.3 |
| Hydraulic oil | No. 46 |
| Max. Working temperature (°C) | 300 |
| Compressed air pressure (MPa) | 0.4-0.6 |
| Water supply pressure (MPa) | 0.2-0.3 |
| Total installed power (KW) | 31(single heating box), 48(Double heating box) |
| Electrical supplying condition | 380V, 50Hz |
| PLC | FX1n-60MR |
| Dimension (mm) | 7200*1750*2000 |
| Weight (kg) | 6500 |
| Pipe diameter(mm) | 160-400 |
| Working length (mm) | 4-6 |
| Production speed | 3-25 pcs/hr |
| Motor power of oil pump (KW) | 2.2 |
| Working pressure(MPa) | 4-6.3 |
| Hydraulic oil | No. 46 |
| Max. Working temperature (°C) | 300 |
| Compressed air pressure (MPa) | 0.4-0.6 |
| Water supply pressure (MPa) | 0.2-0.3 |
| Total installed power (KW) | 15.4(single heating box), 28.6(double heating box) |
| Electrical supplying condition | 380V, 50Hz |
| PLC | FX1n-60MR |
| Dimension (mm) | 6800*1750*1900 |
| Weight (kg) | 4800 |
| Pipe diameter(mm) | 50-250 |
| Working length (mm) | 4-6 |
| Production speed | 5-120 pcs/hr |
| Motor power of oil pump (KW) | 1.5 |
| Working pressure(MPa) | 4-6.3 |
| Hydraulic oil | No. 46 |
| Max. Working temperature (°C) | 300 |
| Compressed air pressure (MPa) | 0.4-0.6 |
| Water supply pressure (MPa) | 0.2-0.3 |
| Total installed power (KW) | 12.5(single heating box), 23.5(double heating box) |
| Electrical supplying condition | 380V, 50Hz |
| PLC | FX1n-60MR |
| Dimension (mm) | 6400*1750*1700 |
| Weight (kg) | 3600 |
