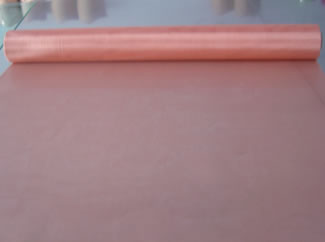

phosphorus bronze wire mesh

Material: phosphorus bronze wire. Phosphorus bronze is an alloy of tin, phosphorus and copper. It’s corrosion, wear and tear resistant which frequently used in the past for fine mesh cloth.

Weave: Plain weave, twill weave, herringbone twill weave etc..

Characteristic: The product is non-magnetic, resistant to corrosion, wear and tear etc., but it’s not suitable for exposure to hydrochloric acid or strong oxidizing agents.

Uses: Usually used in sieving and filtering in pharmaceutical and food hygiene industry; sifting for porcelain clay, particles and powder; printing on the porcelain and glassware etc..

Specifications can be customized.

Phosphorus bronze wire mesh specifications

mesh wire diameter opening (mm) swg mm inch 6 22 0.711 0.028 3.522 8 23 0.610 0.024 2.565 10 25 0.508 0.020 2.032 12 26 0.457 0.018 1.660 14 27 0.417 0.016 1.397 16 29 0.345 0.014 1.243 18 30 0.315 0.012 1.096 20 30 0.315 0.0124 0.955 22 30 0.315 0.0124 0.840 24 30 0.315 0.0124 0.743 26 31 0.295 0.0116 0.682 28 31 0.295 0.0116 0.612 30 32 0.247 0.011 0.573 32 33 0.254 0.010 0.540 34 34 0.234 0.0092 0.513 36 34 0.234 0.0092 0.472 38 35 0.213 0.0084 0.455 40 36 0.193 0.0076 0.442 42 36 0.193 0.0076 0.412 44 37 0.173 0.0068 0.404 46 37 0.173 0.0068 0.379 48 37 0.173 0.0068 0.356 50 37 0.173 0.0068 0.335 60x50 36 0.193 0.0076 - 60x50 37 0.173 0.0068 - 60 37 0.173 0.0068 0.250 70 39 0.132 0.0052 0.231 80 40 0.122 0.0048 0.196 90 41 0.112 0.0044 0.170 100 42 0.012 0.004 0.152 120x108 43 0.091 0.0036 - 120 44 0.081 0.0032 0.131 140 46 0.061 0.0024 0.120 150 46 0.061 0.0024 0.108 160 46 0.061 0.0024 0.098 180 47 0.051 0.002 0.090 200 47 0.051 0.002 0.076
