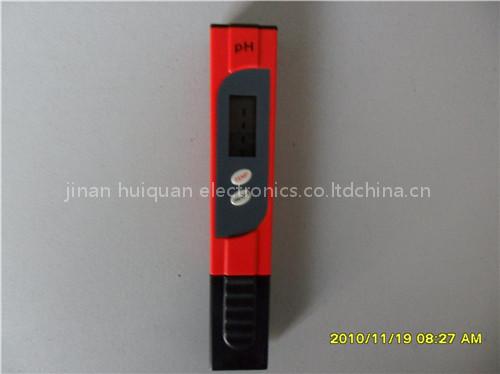

ph meter is a Auto Meter product. Key specs — Origin: china(mainland); Price Term: FOB.
Product Description
*measure range: 0.00—14.00ph
*
*accuracy:+/_0.01ph
*Automatic temperature compensation: 0℃--60℃
*Power supply: 2*1.5V(AG13 battery)
*operating temperature: 0℃--60℃
*calibration: manual at one point through trimmers
*dimension: 155mm*29mm*16mm
*weight: 48g
Operation
remove tneprotective cap.
first rinse the electrode with distilled water, and suck it with filter paper.
turn the meter on by pressing the on key.
immerse the ph meter electrode in the solution to be tested.
stir gently and wait for the reading to stabilize.
after use. rise the electrode with water to minimize contamination. turn the meter on bypressing the off key.
always replace the protective cap after use.
Calibration
25℃ ) standard buffer solution of phosphate, and gently shake the electrode.
regulate the trimmer with a screwdriver until the buffer solution value corresponding to the measurement temperature is obtained.
immerse the electrode in ph 4.01 or ph 9.18 the standard buffer solution of borax.
after about one minute, until the buffer solution value corresponding to the measurement temperature is obtained.
