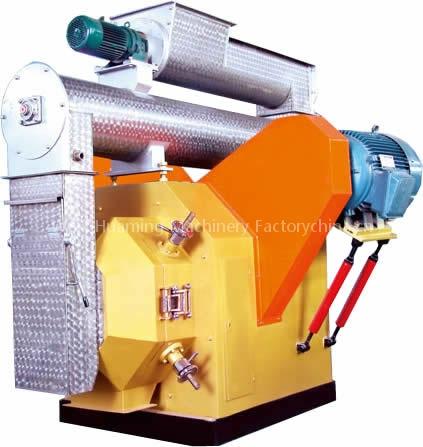

pellet mill

Features: l Double motor SPB high power narrow belt transmission system is adopted, with features of ideal transmission efficiency, stable transmission, high yield, low noise, no oil leakages and low maintenance cost; l Ring dies with bore diameter of 1.5-12mm and thickness are offered for selection to obtain optimum technological and economic benefits; l The fixed stainless steel cutter device makes adjustment easy; l Quick-unloading ring die works with linkage pressing roller adjuster and ring die hoisting device; frequency conversion controller is used for feeding, with overloading protection unit and feeds discharger out of the machine; l Compression bar oil pump lubrication device is quick, labor saving, safe and reliable, which carries out oil filling without stop; l It is applicable for granulation of livestock, aquatic products and others. HKJ Series Pellet Mill Model and spec HKJ35B HKJ40B HKJ45B HKJ50B Power of motor 2×30 2×45 2×55 2×75 Capacity(t/h) 2~6 3~8 4~12 4~18 Diameter of pellet(mm) 350 400 450 508 Power of feeding motor 0.75 .5 1.5 1.5 Size of granule(mm) 1.5~12 1.5~18 1.5~18 2~18 HKJ25C Press Pellet Mill l Inner diameter of pressing die:250mm l Size of granule:1.5~8mm l Power of main motor:22KW l

Capacity:1~1.8t/h l Power of motor for feeding:0.75KW l Power of conditioner motor:2.2KW HKJ32 Press Pellet Mill l Inner diameter of pressing die:320mm l Size of granule:2~8mm l Power of main motor:37KW l

Capacity:2~4t/h l Power of motor for feeding:0.75KW l Power of conditioner motor:2.2KW HKJ45 Grass Pellet Mill It is applicable for alfalfa bur clover Lucerne, straw, cottonseed shell and other light granules. l Inner diameter of pressing die:450mm l Size of granule:2~12mm l Power of motor:2×55KW l Power of motor for feeding :1.5KW l

Capacity:1~2t/h
