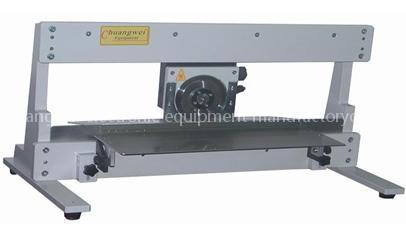

pcb depanelization
Specifications
- Origin
- dongguan city guangdong province china
pcb depanelization is a Furniture Making Machines product. Key specs — Origin: dongguan city guangdong province china.
Product Description
Size: 1027x400x436mm The separate size: 720mm Minimize
Speed: Manual Minimize thickness: 0.6-3.5mm Machine
Weight: 45kg 　 　
Size: 787x400x436 mm The separate size: 480mm Minimize
Speed: Manual Minimize thickness: 0.6-3.5mm Machine
Weight: 30Kg
Feature : 1.Round knife, manually cutting against lower linear knife for reduced stress 2.Separate pre-scored PCB assembly without stress on either PCB or component 3.Separating speed is adjusted by handwheel 4.Handle Intermittent scoring or cut-outs 5.Board with projected component can be cut precisely 6.Large stainless steel platform on both side of cuttingblade prevents board wobble and tableheight and angleblade prevents board wobble and table height and angle are adjustable. 7.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .
