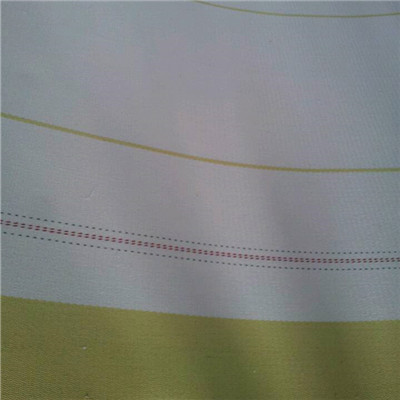

paperboard belt with kevlar edge

paperboard belt with kevlar edge,paperboard belt with kevlar,kevlar paperboard belt

Huatao Wire Belt Factory 86-0311-80772027 troy.l(at)huataogroup com Huataogroup10(at)outlook com 3w htwirebelt com

Huatao Strong woven high speed corrugator belt is a consistent development based on the proven woven high speed corrugator belt range, The strong woven high speed corrugator belt is ideal for corrugating systems with high production speeds, even load systems and frequently changing paper widths.

The woven-in edge reinforcement of aramid fibres（Kevlar） reduces wear substantially and ensures a long service life. The loads on the edges of the corrugator belt are extremely high in corrugator systems with high production speeds, flat-surface pressure systems and frequent changes of paper width.

Up to 40% higher temperature and increased wear due to the belt running over heating plates and shoes, are not uncommon. In order to cope with this additional wear, a belt surface reinforcement was developed for the AQUA PULL AE consisting of a protective layer of firmly woven-in aramid fibres.

The woven-in reinforcement is an integral part of the belt and does not adversely affect either the running characteristics or the moisture regulating properties of the belt. The width of the edge reinforcement is variable. It can be adjusted flexibly to meet the specific needs of the corrugating system. Belt Features: 1.

Straight cut edge and long service life. 2. Level surface, clean mark. 3. Hot-press and flocking joint. 4. High moisture absorption and release; Low noise and high speed of operation. 5. Woven-in edge reinforcement ensures extra long service life.

Specification: Product Model: Strong High-speed Corrugator Betlt with Kevlar Thickness: (9 ± 0.3）mm Width: 1600 - 2800 mm Heat-resistance: 200℃,(edge part up to 350℃） Tensile strength: 70Mpa Coefficient of friction: ≥0.4µ Weight per unit: (7±0.3) kg/m2 Air-permeability: 300 m³ / m2h (1kpa) Run Speed: ≥ 200 m/min
