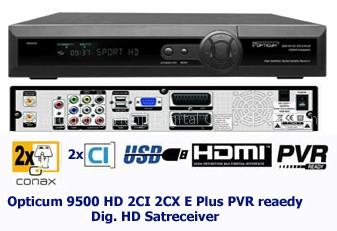

opticum9500hd

01 2x Card Reader slot with Conax embedded 02 2x Common Interface slot for CAM modules 03 Ethernet supported 04 USB 2.0 Host support 05 HDMI supported 06 Video resolution 1080i, 720p, 576p, 576i 07 Software & Channel Database Transfer via USB 08 Blind scan 09 Multi-LNB Controlled by DiSEqC control Version 1.0, 1.1, 1.2 and USALS 10 Teletext support 11 Multi picture display 12 Powerful channel control by favorites, lock, skip, move and delete 13 Multi-language supported (OSD & Menu) 14 Optical Output for Digital Audio SPECIFICATION System Resources Main Processor: 400 MIPPS based CPU Flash Memory: 8Mbytes [Optional Expand] DDR SDRAM: 1024+512Mbits [Optional Expand] Tuner/Channel 1tuner: Decoding Input Connector: F-Type, Connector, Female Loop Through: F-Type, Connector, Female Signal Level: -65 to -25 d Bm LNB Power & Polarization: - Vertical: +13V/+14V - Horizontal: +18V/+19V - Current: Max 500mA - Overload Protection 22KHz Tone: Frequency: 22±1KHz DiSEqC Control: Amplitude: 0,6±0,2V, Version 1.0, 1.1, 1.2, USALS Available Demodulation: 8PSK/QPSK Input Symbol Rate: 2-45 Mbps, Convolution Code rate 1/2, 2/3, 3/4, 5/6, 7/8 and Auto MPEG TS A/V Decoding Transport Stream: MPEG-2/H.264 Input Data Rate: 120Mbit/s max

Aspect Ratio: 4:3, 16:9, Letter Box Video Decoding: 1920x1080i Video Resolution: 720x576 (PAL), 720x480 (NTSC) Audio Decoding: MPEG-1 Layers 1/2, Dolby AC-3 Audio Mode: Left / Right / Stereo Sampling Rate: 33KHz, 44,1KHz, 48KHz A/V & Data Input/Output TV-SCART: Video CVBS/RGB output, Audio L/R output VCR SCART: Video CVBS output, Audio L/R output, Video CVBS, RGB input, Audio L/R input RCA A/V: 1x YPb Pr output, Video CVBS output, Audio 2x L/R output S/PDIF: Optical, Coaxial Digital Audio or Dolby AC-3 Bit Stream Output RS-232C: Transfer rate 115,2Kbps, 9 pin D-sub type USB: USB 2.0, Compatible w/independent power supply output HDMI: VER1.2 Type A Physical Specification Size[W*H*D]: 360mm x 266mm x 65mm Net

Weight: 2,49 kg RF-Modulator (Optional) PLL type: CH21~69 for the Demodulation TV

Standard: PAL BG/I/DK selectable RF Connector: 75 Ohms, Male/Female Frequency Range: UHF : 470~860MHz Power Supply Input

Voltage: 100-250 VAC, 50/60Hz

Type: SMPS Power Consumption: 30W Max. Protection: Separate Internal Fuse and Chassis Grounding. The input shall have lighting or electric shock protection Environment: Operation

Temperature: 0°C~+45°C Storage

Temperature: -10°C~+70°C Storage Humidity: 5~95°RH (Non Condensing)
