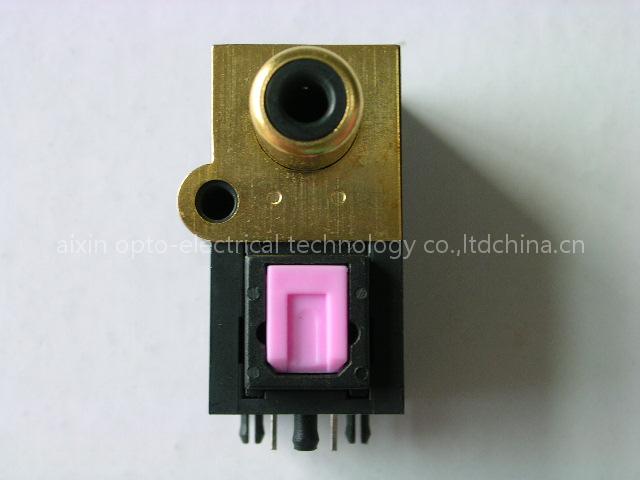

optical toslink modul AX-DLT11R2-D2

·High speed signal transmission

( 16Mbps, NRZ signal )

·Input TTL compatible

· +3~+5V power source

Descriptions

The TYLINK is a new design connector including traditional RCA and Data Link inner

opto-electric component. Not only does TYLINK transmit electric digital signal but also

light signal.

The optic unit is operated at single +3V~ +5V and RCA input signal at ± 0.5 V. The

DLT11R2-D2 has a maximum operating speed of 16 Mbps. The optic unit has high

performance at low dissipation current, steady light output and efficient light coupling.

Applications

·DVD player
