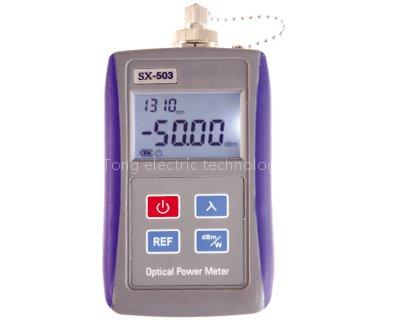

optical power meter SX503
Specifications
- Brand
- SaiXun
- Origin
- tianjin
- Price Term
- FOB
optical power meter SX503 is a Health & Medical product. Key specs — Brand: SaiXun; Origin: tianjin; Price Term: FOB.
Product Description
Description:
SX503 Handheld Optical Power Meter is a self-developed test instrument Which is widely used for installation, operation and maintenance of fiber-optic network. It features smartappearance, backlight, auto-shutdown and widely dynamic range, good testing precision and universal optical connector for FC/SC/ST.
Features:
1. High sensitivity, large dynamic range
2. universal connector interface: FC/SC/ST-LC/MU.
3. Quick response, without warm-up and reduce testing time
4. Low-voltage display function
5. Optional auto-shutdown feature
6. Automatic calibration function
7. The relative ratio test
8. Large LCD display and backlight
Application:
1. Maintenance Telecom
2. Maintenance CATV
3. Test Lab of Fiber Optic
4. Optical fiber sensors
Specifications:
Type | SX503A | SX503B | |
Wavelength(nm) | 800~1650 | ||
Detector | InGaAs | ||
Optical Connector | FC SC ST/ Universal 2.5mm adaptor (LC,MU can be optional ) | ||
Measurement Range(dBm) | -70~+10 | -50~+26 | |
Uncertainty | ±5% | ||
Standard Wavelength(nm) | 850,1300,1310,1490,1550,1625 | ||
Resolution(dB) | 0.01 | ||
Power Supply | 3pcsAAA 1.5V batteries | ||
working time(h) | 120 hours | ||
Operating Temperature(℃) | -10~+50 | ||
Storage Temperature(℃) | -20~+70 | ||
Automatic shutdown(min) | 10 | ||
Dimension(mm) | 125*65*29mm | ||
Weight(g) | 160g(include batteries) | ||
