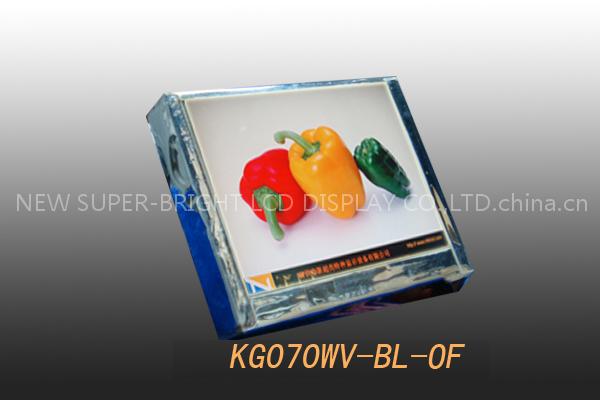

open frame super bright industrial LCD monitor

KG070WV-BL-OF is a 7.0 inches (16:9) super bright industrial LCD monitor.When the output power reaches 12W, the brightness of KG070WV-BL-OF LCD display can acheive maximum 1000nits (5 times of other standard products). Through adjustment of the LED constant current controller circuit, the brightness of screen can be reduced to 5cd/m2 . With its wide viewing angle and real color display, the resolution can achieve 800 X 480 enabling this monitor to show clear pictures under strong sunlight or in total darkness.

use our own patented super bright LED backlight, therefore achieveing superior optical display features, excellent heat dissipation and high reliability.

Due to its high brightness and wide temperature adaptability, stable, clear and vivid display can be seen under strong sunshine and extreme temperatures. The brightness of LED backlight of KG070WV-BL-OF is the brightest compared with similar products. It is also one of our high-tech products that is superior in the market.

KG070WV-BL-OF can be widely used in car monitor, industrial control equipment and all other indoor-outdoor application.

Optional accessories: infrared touch control or PC,etc.

1.Product features:

lKG070WV-BL-OF LED super bright backlight, brightness of screen can reach 1000nits,(roughly 5 times of other standard products)

lExcellent optical display performance

lPatented super bright LED backlight cooling components,excellent heat dissipation design

lBright color display, resolution up to 800 x 480

lOptional automatic light sensor, adjust brightness according to ambient luminance ( enhance service life and energy saving)

lWorking temperature:-10°C to +50°C

lClear, vivid color display under strong sunlight

lSpecially designed to resist shocks in industrial application

lFull-featured open frame installation structure, convenient solutions for customers
