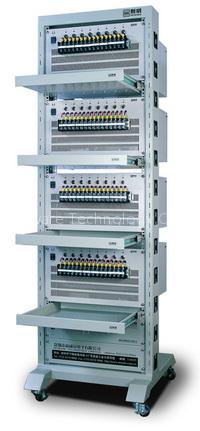

notebook Li-ion battery testing equipment

BTS series battery test system is eight channels battery test system for Li-ion, LiFePO3, Ni-MH, Ni-Cd batteries. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc.

According to the international standard design, each channel of the system has an independent constant-current source and a hardware constant-voltage source. Constant-current source and constant-voltage source can be programmed and controlled as desired.

In addition, an independent pulse source is added to each battery channel to meet with the requirements of dynamic internal resistance measurement. BTS8-3 adopts module construction. With plug-and-play design, the user can freely remove and load the module units under a nonstop status without interrupting other module unit's normal running.

This function is convenient for the system's maintenance. We can make as customer requirement make from 1mA~1000A\2V~500V.
