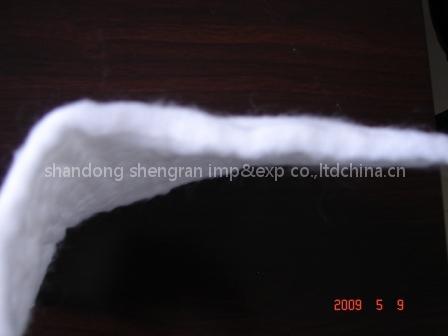

non woven geotextile

Shandong shengran imp& is a professional manufacturer and supplier of civil engineering geotextile. With the equipment imported from Germany.,we can produce a wide range of civil engineering geotextiles including Filament Spundbond Needle Punched Geotextile, Short fiber needle punched non woven geotextile, GCL ( geosynthetic clay layer), Geomembrane, Biaxial geogrid, Compound geomembrane,Tri-dimension composite geonet for drainage.



This geotextile can be made of polypropylene (PP), or polyester (PET), Polyvinyl or synthetic fiber on needle punch machine. The mass is available from 100gsm/m² to 1000gsm/m² and the width available from 2.0m-7.0m, monolayer or multilayer (reinforcement geotextiles), long fiber or short fiber. Color: all kinds of color are available. The annual production ability is 10 million square meters.
The fabric can also be heat treated by infrared at customer's requirements. Our geotextile are UV stabilized to give protection against aging under exposure to natural ultra-violet light.

Filament Spundbond Needle Punched Geotextile

●Specification
100g/m2~ 800g/m2
●Properties
Anti-aging, Acid and Alcali resistance, abrasion resistance, good flexibility and easy for construction.
●Applications
Used in the areas of highway, railway, dyke, water project construction, tunnel for its reinforcement, filtration, isolation and drainage.
●Packing size
Width:4-6m; Length:50-100m ( or at the client’s request)

Short fiber needle punched non woven geotextile

●Specifications
100GSM—500GSM
●Properties
The product has the property of anti-aging, high strength, good flexibility and permeability, filtration, isolation and easy construction etc.
●Applications
It is widely used in areas of the railway, highway, sport venue,dyke,water project construction, tunnel,sea beach,inning,environment protection and so on. It can also used in the reinforcement, separation,filtration,drainage etc.
●Packing size
Width:2-6m, Length:50-100m( or at the client’s request)



Geomembrane

Functions
Separation, anti-leakage
Application

●Use for the base of expressway, highway, railway and the waterproof layer of swelled soil and wet-sink loess.
●Use for the dyke of river,lake, remaining mine,sewage and reservoir, tunnel, storage pool (hole,mine)
●Use for the anti-leakage liner of building roof,railway, underground and tunnel.
●Use for plane-direction laying of the dam,and vertical-direction laying of groundsill and construction cofferdam,flotsam field.
●Use for seawater and fresh water breed field
●Use for anti-leakage of garbage burying field,disposing sewage or waste dregs.
Category
LDPE geomembrane,LLDPE geomembrane, HDPE geomembrane,EVA geomembrane, ECB geomembrane,PVC geomembrane and geomembrane with textured surface

Compound geomembrane

Specification

● 1-layer geotextile and 1-layer geomembrane; weight of base geotextile:100-1000g/m2; Thickness of geomembrane: 0.1-1.5mm
● 1-layer geotextile and 2-layer geomembrane; weight of base geotextile: 100-1000g/m2; Thickness of geomembrane:0.1-0.8mm
● 2-layer geotextile and 1-layer geomembrane; weight of base geotextile: 80-600g/m2; Thickness of geomembrane: 0.2-1.5mm
● Multi-layer geotextile and geomembrane; Weight of base geotextile: 100-1000g/m2; Thickness of geomembrane: 0.1-0.8mm

●Properties
Good flexibility and the geotextile has the functions of block( anti-leakage) besides the properties of anti-aging, high strength, good flexibility and separation.
●Usages
It can be widely used in water conservancy, dam, tunnel, road, airport with its main function of anti-leakage, protection, reinforcement and etc.
●Packing size
Width:2-6m; Length:50-100m( or at the client’s request)

GCL ( geosynthetic clay layer)

●Specification
Unit weight ≥ 4000g / m2, width of 4-6 m
●Characteristics
Comacted with clay liner,it has the advantages of small size, light weight, good flexibility and seal, easy for construction and suitable for uneven settlement.
●Usage
nbsp;Mainly used in environmental engineering of landfill emissions, underground reservoirs, underground infrastructure construction projects, sealing solution, segregation, anti-leakage, good effect, anti-destructive.

Biaxial geogrid

●Specification
TGSG15-15 TGSG20-20 TGSG25-25 TGSG30-30TGSG35-35 TGSG40-40
●Properties
It is made by pressing and pulling in double-direction the PP(Polypropylene) and HDPE( High Density Polyethylene) especially. The geogrid can decrease the quantiy of the filling, envenly distribue the load stress and has high module in double-direction pulling and tensile strength and high destroying resistance and endurance. It has the property of homogenous structure, low creepage, anti-aging, acid and alkali.
●Usage
Mostly used in soft base disposal and reinforcement of the soil structure and all kinds of reinforcement of soil base. It can divide the load stress, increase uneven settlement. And used in the work of highway, railway, harbor, airport, municipal construction.
●Packing size
Width≤4.0m, length: 50m ( or at the client’s request )

Geocell is made of tape of HDPE with high strength, which are welding into a piece of netty cell structure. It can be stretched out and folded easily. It can be folded in course of conveyance while being stretched out , soil, stone or concrete can be filled into it, which will become a structure body with big side restriction and bid rigid degree. It can be used as the liner to deal with the soft soil basement and increase its loadability and also put on the slope to be made up the protecting structure. It also can used to build bracket structure. This product is easy for construction.

●Specification
nbsp;TGLG5 TGLG8 TGLG10 TGLG15 TGLG20 (cm)
●Properties
Anti-aging, acid and alkali resistance, homogenous structure, the best side restriction and soil-fixation, convenient and fast construction.
●Usage
Used in the roadbed of railway, highway, dyke, retaining wall of bearing load, fathering of shallow riverway, supporting the pipe and sewer, preventing the slope and the composite retaining wall bearing load. It can be used in wall, port, breakwater and etc.
●Packing size
Length: 4.1-6.8m.

Address: No.655,qilu street,Qihe county,shandong province,China.
