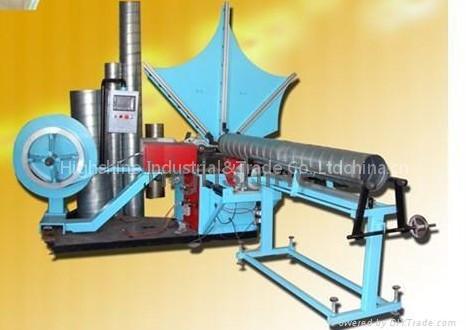

no mould spiral tube former machine

Highshine Spiral tube former(Spiral tube forming machine)is used for producing HVAC round duct. Owing to its excellent performance and low cost, Spiral ductwork has been widely promoted in ventilating and air conditioning systems. It features low wind resistance, high effect, fine rigidity, and convenient installation, thus adapts to the application for large ductwork locations.

*Product Feature

1. Special mould for various tube diameters, easy to change and adjust, no need crane or too much manpower.

2. Large diameter range

3. High speed synchro flying cutting system.

4. PLC control, convenient operation

5. Light and small, suitable for site work.
*Product Specification

1. Diameter of round tubes: 85mm ~ 1500mm.

2. Max. tube length: unlimited.

3. Thickness of strip: 0.3 ~ 1.2mm

4. Width of strip: 137mm ~ 140mm

5. Strip speed: 1~40m/min, adjustable

6. Suitable strip material: aluminum, stainless steel, galvanized steel, etc.

7. Dimension(L*W*H): 3500x2800x2580（mm） Weight: 2500kg

8. Main Power: 5.5kw; Cutting Power: 4kw; Hydraulic Power:3KW

9. Air Pressure: 0.5-0.7Mpa

10. Control System: Japan Omron transducer & PLC
