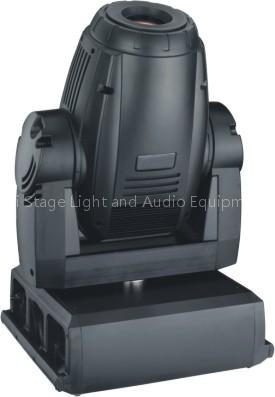

moving head

TECHNICAL REFERENCE Voltage/Frequency: AC220V/110V50-60Hz Power Consumption: 1500W Lamp: HTI 1200W/SE or MSR 1200SA Base: GY22 Lamp ON/OFF: Independent DMX512 control Brightness: 105,000 Lumen Color Temperature: 5400K Lamp Work Life: 750 Hours Communication Protocol: USITT DMX512 Control Channel: 18/24/32 3 kinds of channel mode are selectable.

Pan/Tilt: 540 degree,280 degree Focus: Independent electronic linear focus Frost Effect: Dynamoelectric, Independent adjustable Display: English LCD pattern display, infinite rotary and adjustable slider select Menu Cooling System: Fan speed adjust able automatically.

Pan/Tilt: Use double function, high precision photoelectric device, with automatic rectify and reset function 16 bit resolution. Data Input/Output: 3Pins, 5Pins standard connector Zoom: 13-42°electronic linear zoom system, infinitely zoom out beam and gobo function. Dimmer/Flash: 1-10/s high speed, adjust the flash effect.

CMYK: 0-100% 4 teams of the CMYK color change, infinite color mixing is available, MACRO configuration Color:6 changeable colors+ white, linear color change, high speed rainbow stream effect.

Gobo Wheel 1: 6 changeable glass gobo+ white Gobo Wheel 2: 6 changeable glass gobo+ white Iris: Dynamoelectric 10-100% linearly adjusting the beam Infra-red,ether net control function
