Listing ID#10043367
ModelMD0505A
CategoryElectronics & Instrument Enclosures

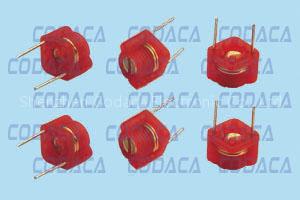

molded coil
Specifications
- Brand
- Codaca
- Origin
- China
Quick answer
molded coil is a Electronics & Instrument Enclosures product. Key specs — Brand: Codaca; Origin: China.
Product Description
Features:
PP plastic bobbin
high stabilty, firm structure
frequency range : 30MHz to 200MHz
tempreture coefficeint: 150ppm/c(Max)
lead free products , RoHs compliant.
Application:
ANT, RF&OSC Coils.
FM radio, TV receiver, Transceiver.
Car, Wireless telecommucication and RF electronic application
Electrical charateristics:
| Part No. | Color | Inductance (Min)nH | Inductance (Min)nH | Inductance (Min)nH | Q value | Test Frequence (MHz) |
MD0505A-1.5T-C-BR | Brown | 14.8 | 15.2 | 15 | 70 | 200 |
MD0505A-2.5T-C-BR | Red | 23.8 | 24.8 | 24.3 | 70 | 200 |
MD0505A-3.5T-C-BR | Orange | 37.5 | 38.6 | 38.2 | 60 | 200 |
MD0505A-4.5T-C-BR | Yellow | 43.8 | 46.9 | 45.3 | 60 | 200 |
MD0505A-5.5T-C-BR | Green | 53.2 | 56.6 | 54.9 | 50 | 200 |
MD0505A-6.5T-C-BR | Blue | 62.6 | 65.6 | 64 | 50 | 200 |
| MD0505A-5.5TC-B | Green | 91 | 89.5 | 92 |
