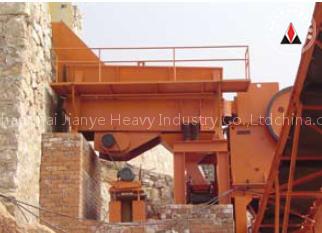

mining machine-ZSW-600x150

Vibrating Feeder Operating principle:
It makes the movable parts, such as sieve box and vibration device, to move compulsorily and successively just like a circle or a similar one, under the function of the centrifugal force occurred from the revolution of the eccentric block in the vibration device. The stuff moves with the continuous parabolic movement on the inclined screen surface, along with the sieve box. When thrown up, the materials are classified; when falling, they pass through the screen.

Vibrating Feeder Specification:

Model	Max Feed Size (mm)	Capacity (t/h)	Speed of Eccentric Shaft(r/min)	Power (KW)	Electric Model (r/min)	Overall Dimension (mm)	Weight (t)
GZD180×80	300	30-80	-	2×1.5	970	2200×1100×800	0.8
GZD300×90	500	40-100	-	2×2.2	970	3050×1430×1550	1.5
GZD370×100	700	150-300	-	2×3.2	970	4250×1874×1130	3.64
GZD430×120	800	200-400	-	2×5.5	970	4955×2206×1120	4.2
ZSW380×96	500	90-100	500-174	11	750	3882×2224×2121	3.98
ZSW490×96	500	120-240	500-800	15	1000	4957×2277×2150	5
