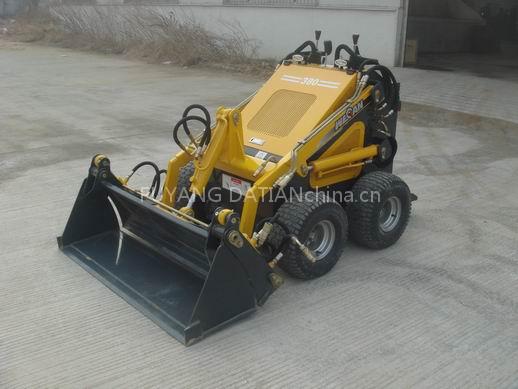

mini skid steer loader
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
mini skid steer loader is a Industrial Power Supplies product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Model Item | HTC380 | |||
Engine | Rated Power(Kw) | 14.9Kw(20Hp) | ||
Rotating speed(rpm) | 3600 | |||
Noise (dB) | 95 | |||
GMdraulic System | Pressure(Mpa) | 17 | ||
Cycle Time (s) | Raise | Dump | Lower | |
4.27 | 1.34 | 3.31 | ||
Performance | Operating Load (Kg) | 200 | ||
Bucket capacity (m3) | 0.15 | |||
Max Lifting Force(Kg) | 375 | |||
Speed (Km/h) | 5.5 | |||
Operating weight(Kg) | 940 | |||
Fuel tank(L) | 21 | |||
GMdraulic oil tank(L) | 27 | |||
Tyre | 16*6-8 | |||
Dimension of HTC380 Mini Loader
Model Item | HTC380 |
Max. height (mm) | 2112 |
Dump height(mm) | 1460 |
Overall height (mm) | 1205 |
Overall length with bucket(mm) | 2206 |
Dump distance (mm) | 388 |
Overall Length without bucket(mm) | 1752 |
Bucket width(mm) | 980 |
Overall length to outside of tyre(mm) | 1033 |
Ground clearance(mm) | 90 |
Clearance circuit front (mm) | 1307 |
Dump angle at max height | 30 |
Max attachment rollback when bucket on ground | 25 |
